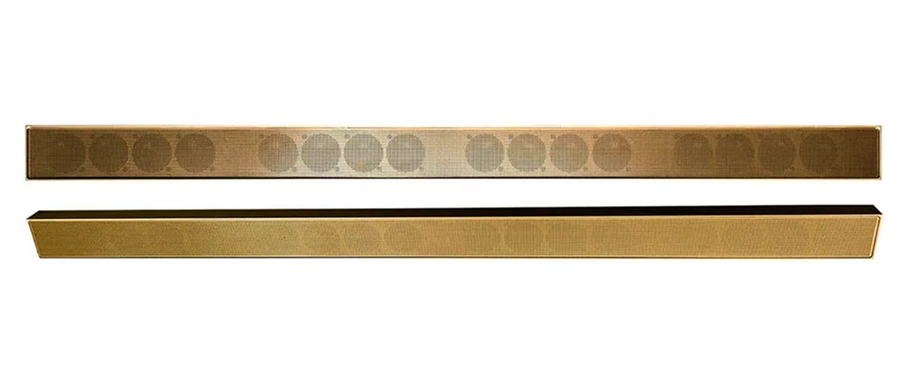

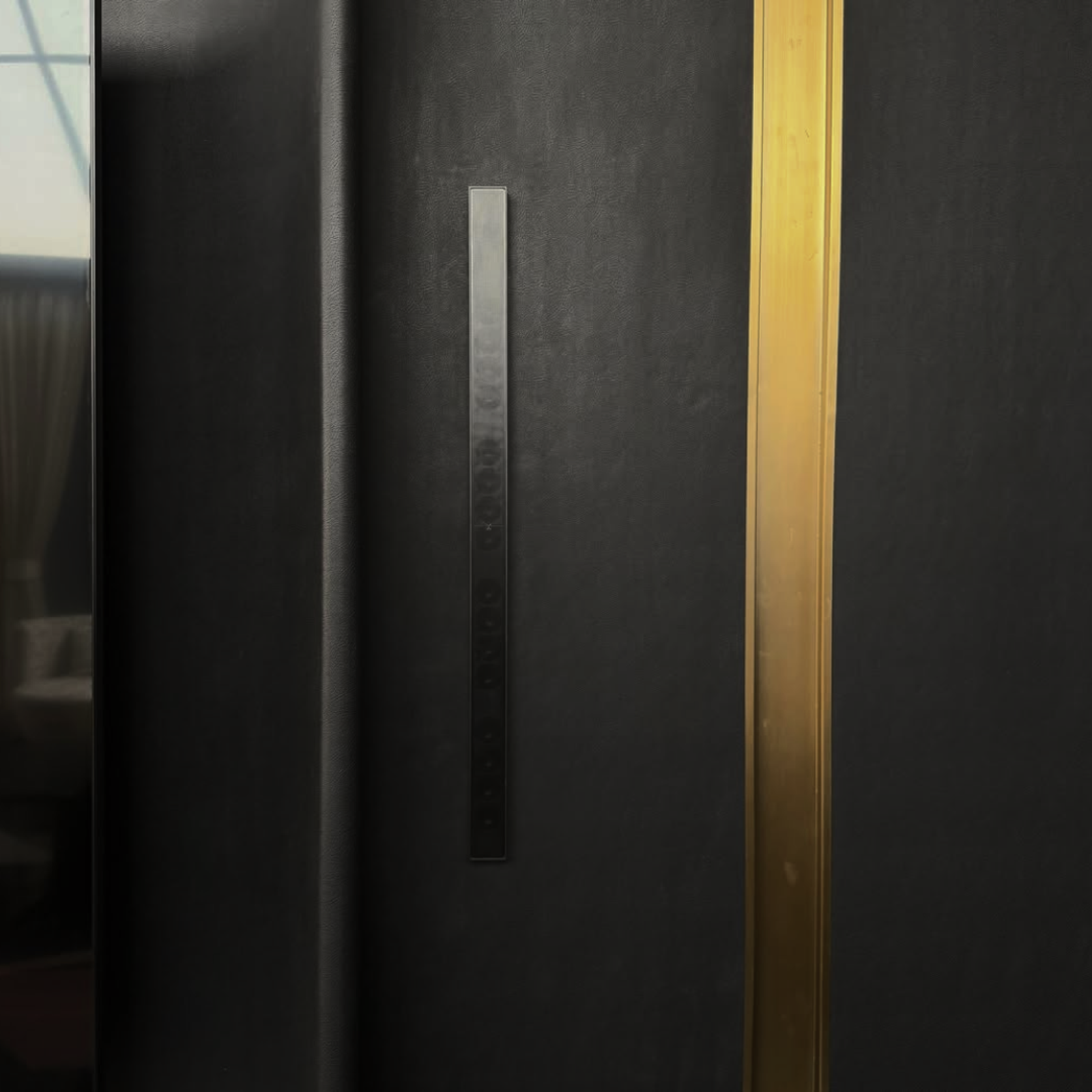

QuadCane
Ultra Slim Array Speaker
Ultra-slim aerospace-grade aluminium speaker delivering 100W of pure wide-dispersion sound. 16 drivers in one body.
XSP-SA-QAD
100W8Ω150Hz – 20kHzPassive
Champagne · Black · WhiteMarine TreatableCustom RAL
Move cursor to illuminate
Design Philosophy
×
No visible fixingsEvery fastener is concealed. The grille, baffle and chassis unite as a single uninterrupted surface — nothing to catch the eye, nothing to break the plane.
×
No draft angle
×
No unnecessary pattern
×
No compromise on finish
→
Four drivers. One voice.
01 / 05
Technical Specifications
21 parameters · scroll to explore
Power RMS
100W
fills a large living room
01 / 21
Acoustic
Power RMS
100W
Power Peak
120W
Impedance
8Ω
Sensitivity
95dB
Frequency
150Hz – 20kHz ±3dB
Driver
16 × 1.25
Driver Material
Neodymium, Rubber Edge, Graphite Cone, Rubber Surround
Physical
Dimensions
763 × 43 × 21 mm
Weight
0.8kg
Housing
Aerospace Grade Aluminium

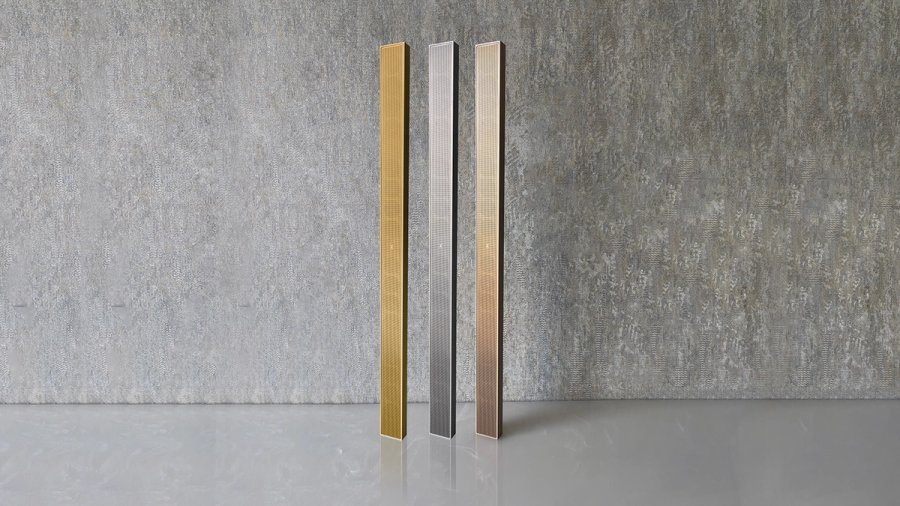

Colours
Matte Champagne, Black, White
Custom RAL
Available
Power Type
Passive
Mounting
Corner, Floorstand, In-Wall
Paintable Grille
No
Grille Material
Mild Steel
Paintable Grille
No
Crossover
Built-In Passive Crossover
Max SPL
116dB
THD+N
≤0.2% @ 1W/1m
Connectivity
THD+N
≤0.2% @ 1W/1m
Acoustic Measurements
Frequency Response & Directivity
Frequency Response
On-axis · 1W/1m · 150Hz – 20kHz ±3dB · 95 dB sensitivity
Polar Pattern
Normalised polar response · H 140° / V 25° (−6 dB @ 1 kHz)
Proprietary Technology
Built different. By design.
In Use
Common installations
Source
Any AVR
Dolby Atmos

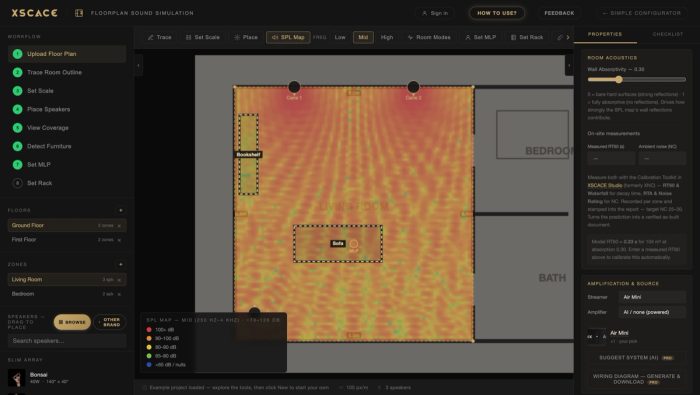

AI System Builder
Don't see your setup?
Tell the AI your room, budget and use case — get a complete system in seconds.
Technical Documents
Downloads
Accessories
Mount it your way
Product
In Use
mount

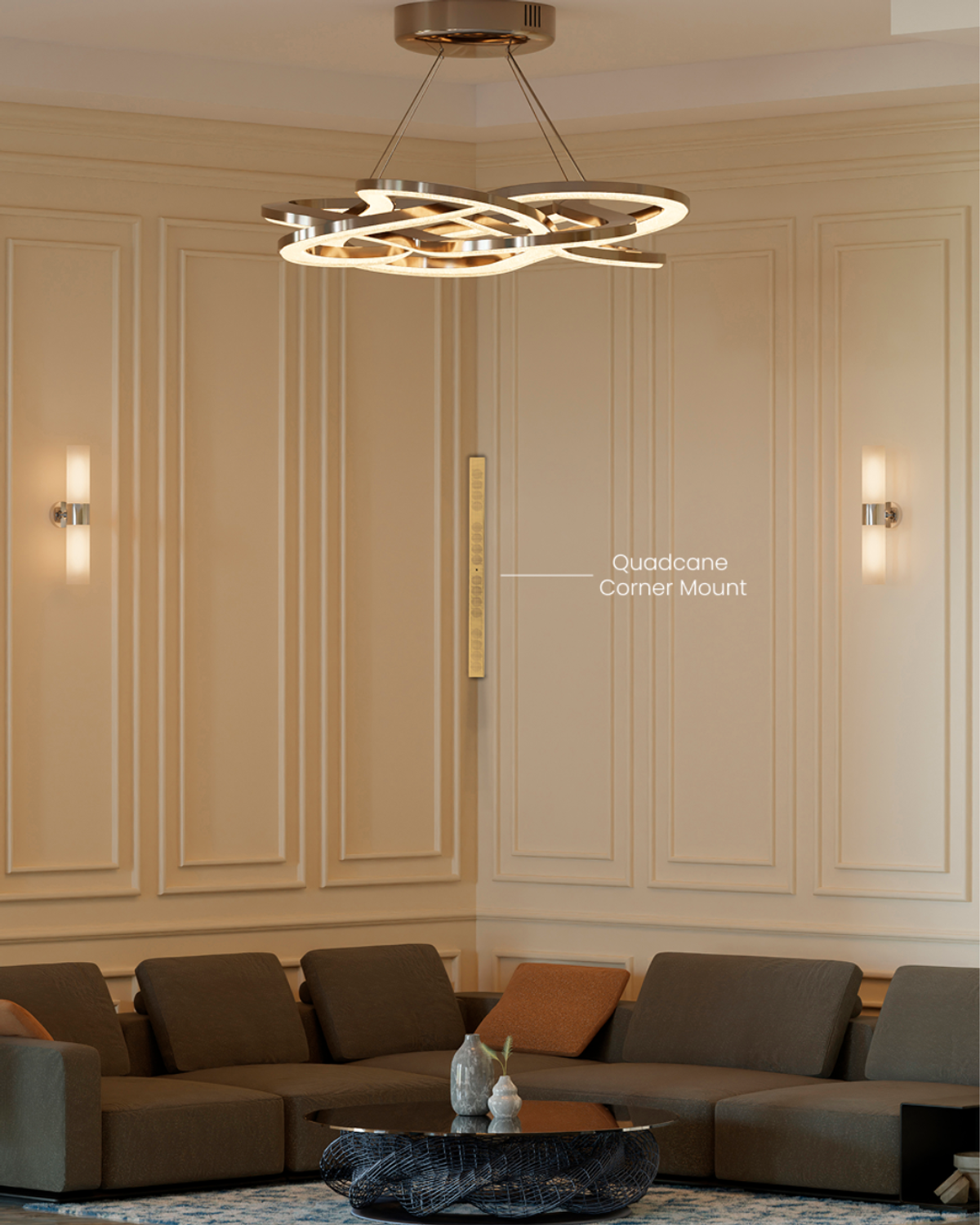

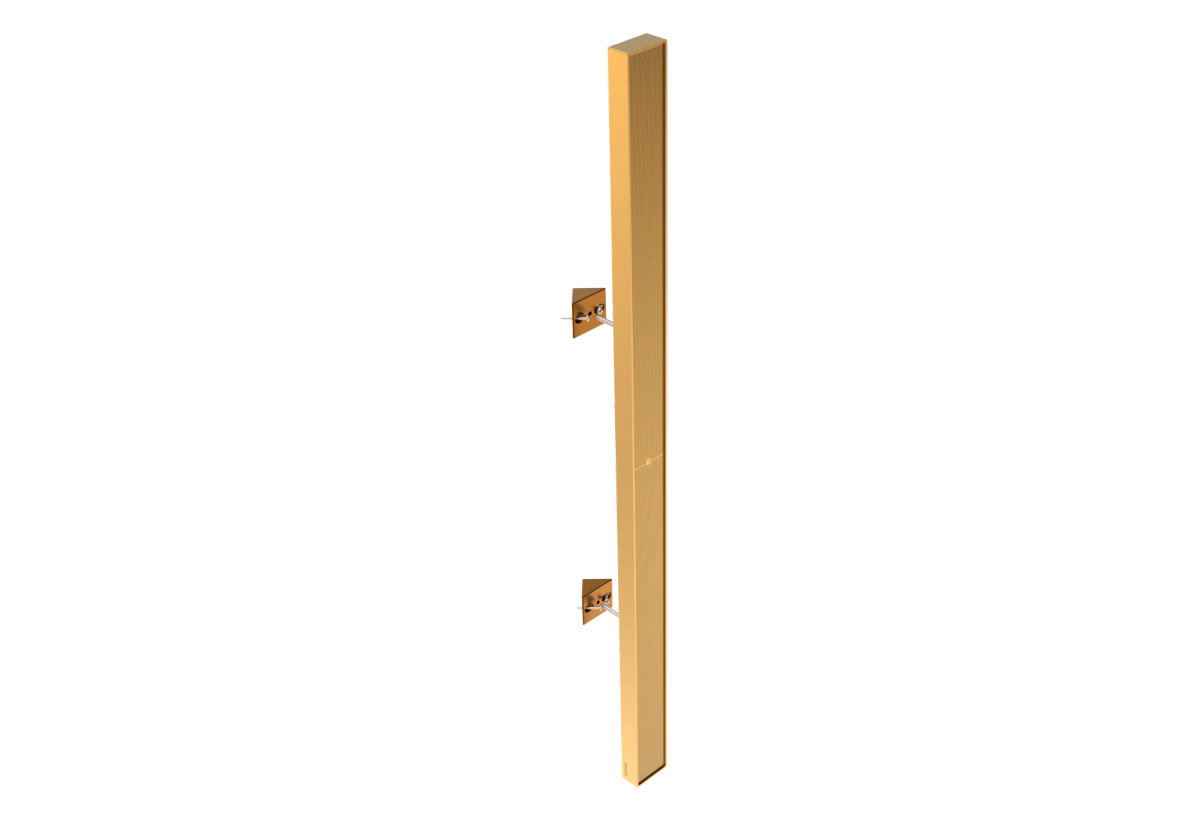

QuadCane Corner Mount
Dedicated 90° corner bracket for the QuadCane slim array
Angle45°
Material6061 Aluminium
FinishPowder coat
Max load8kg
XSA-MNT-CRN-QCA
Enquire about this accessory →
Product
In Use

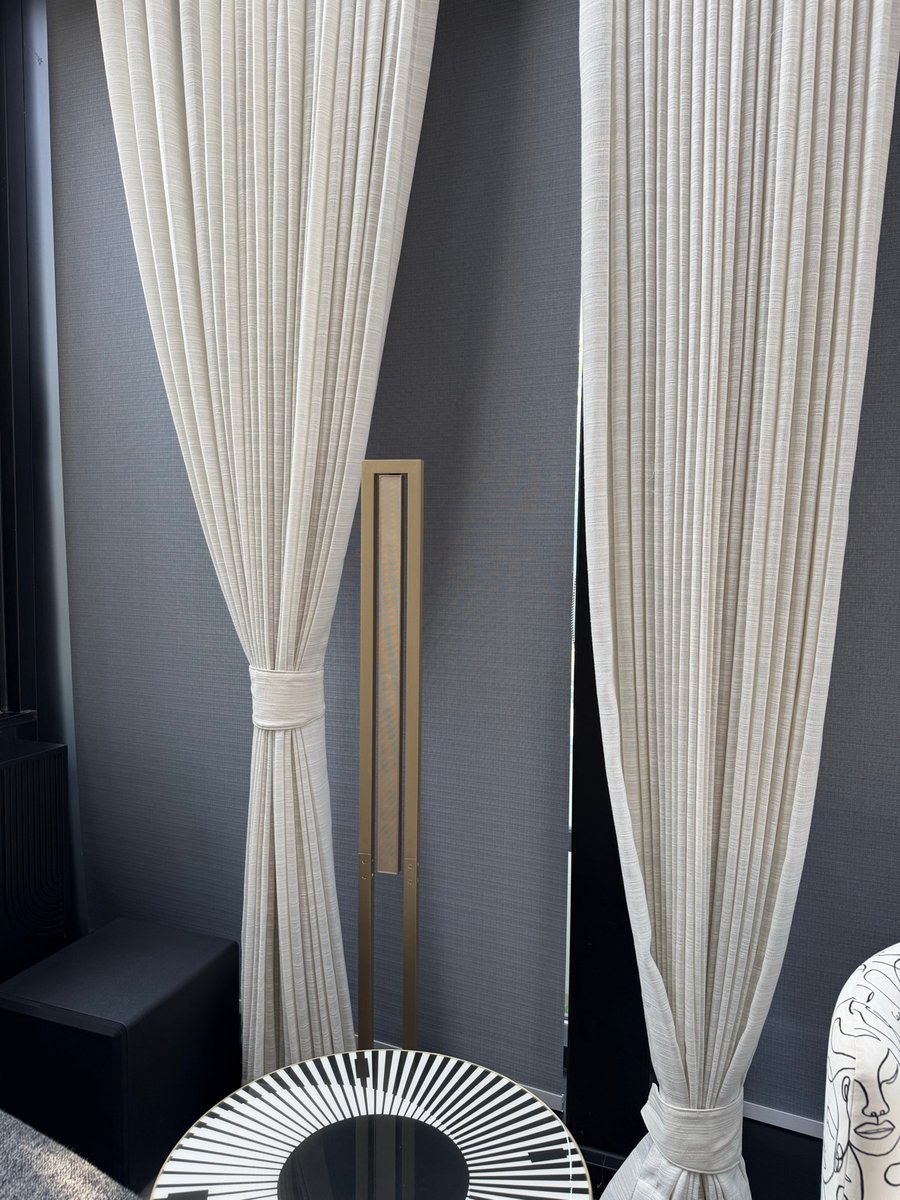

stand

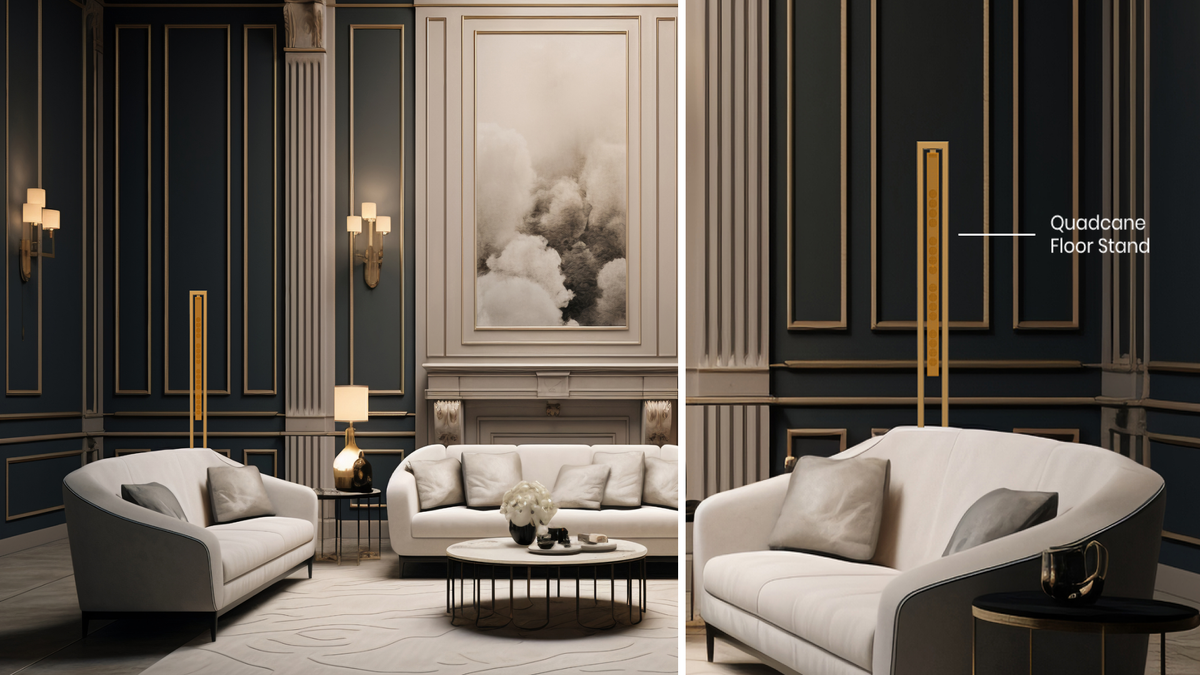

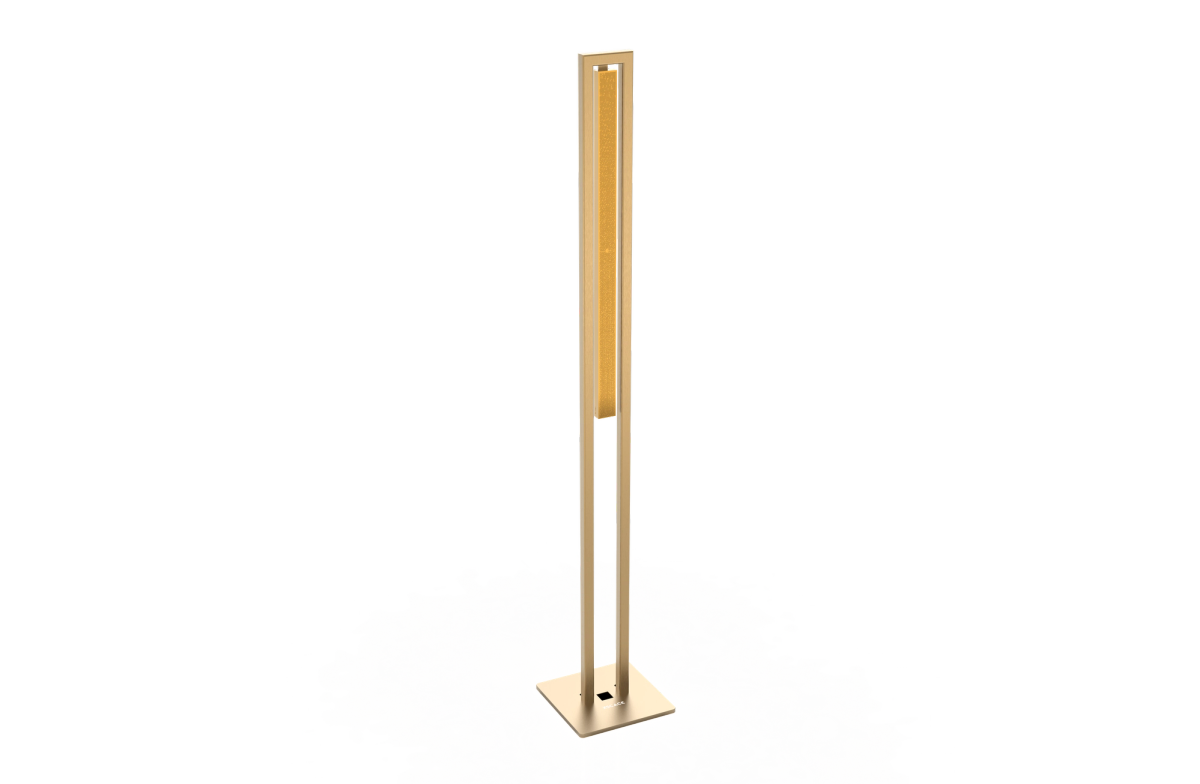

Cane Floorstand
Weighted aluminium column stand for open-plan spaces
Height900mm
Base diameter300mm
Weight (empty)3.2kg
Material6061 Aluminium
XSA-STD-FLR
Enquire about this accessory →
Product
In Use

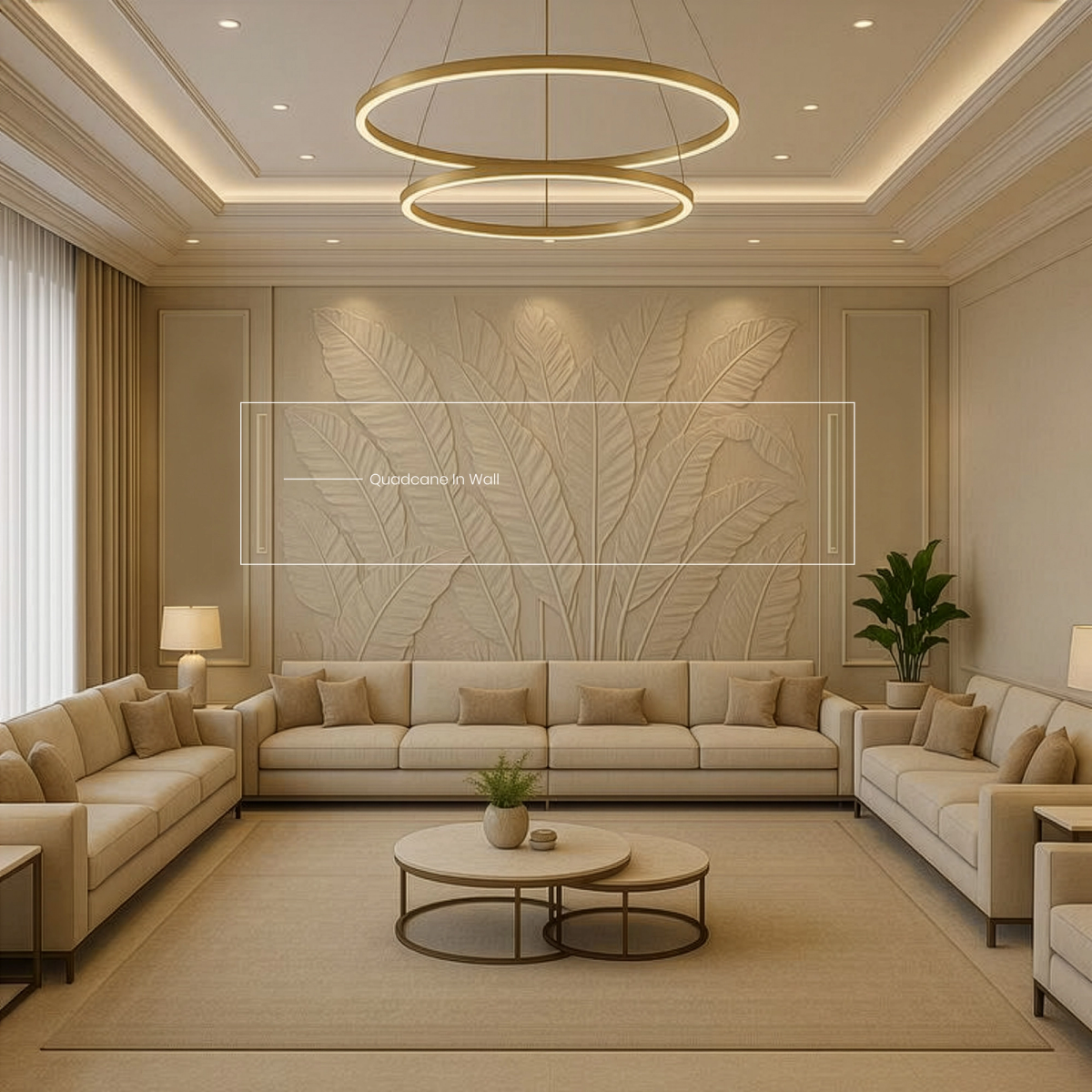

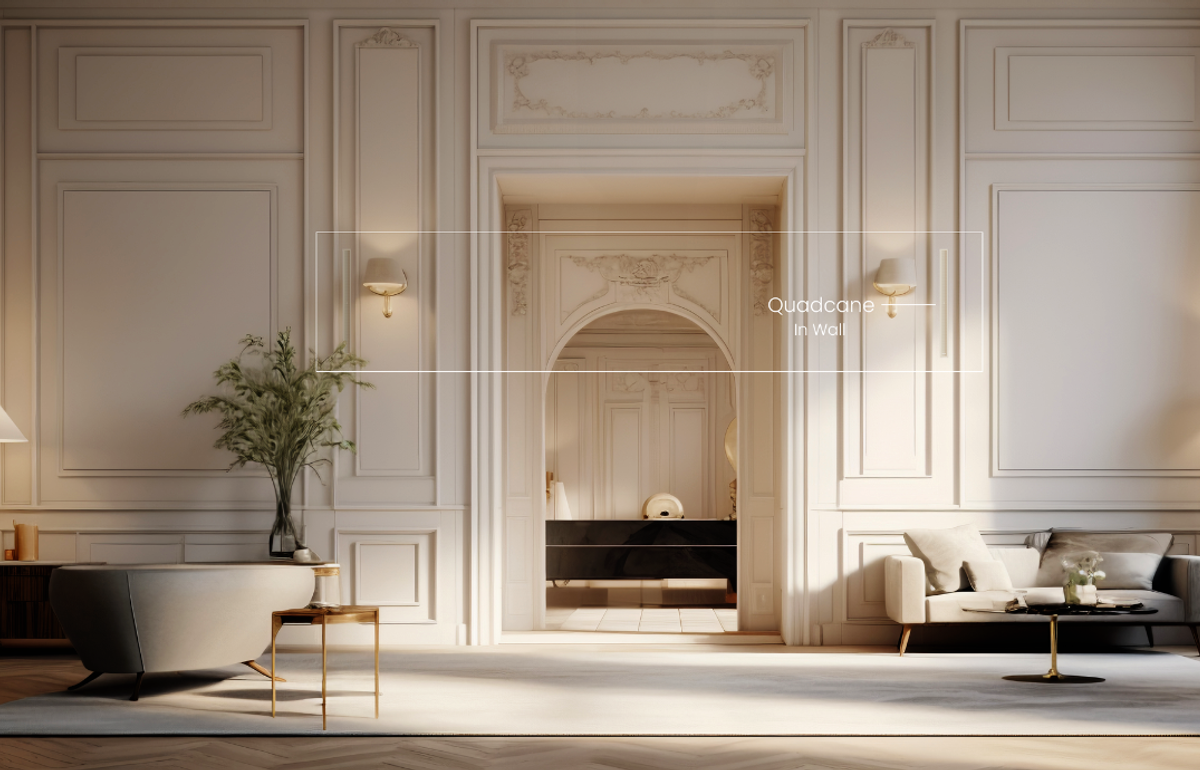

In-Wall / In-Ceiling Version
QuadCane In-Ceiling / In-Wall
The fully flush version of the QuadCane — same driver array, same performance, completely hidden inside the wall or ceiling.
View QuadCane In-Ceiling / In-Wall →Mobile App
iOS & Android
XSCACE Controller
When paired with Air Amp or Air Mini, control this speaker from your phone. Volume, balance, channel select, X-Sense AI room calibration, and streaming — all in one app.
Learn more →

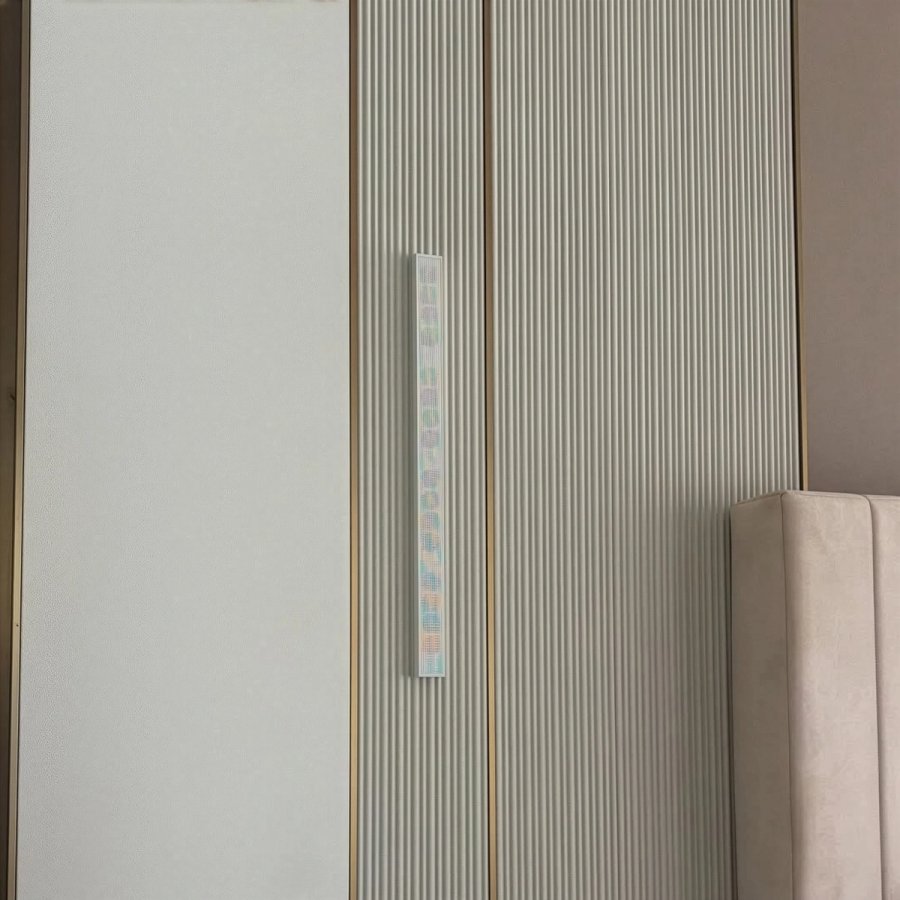

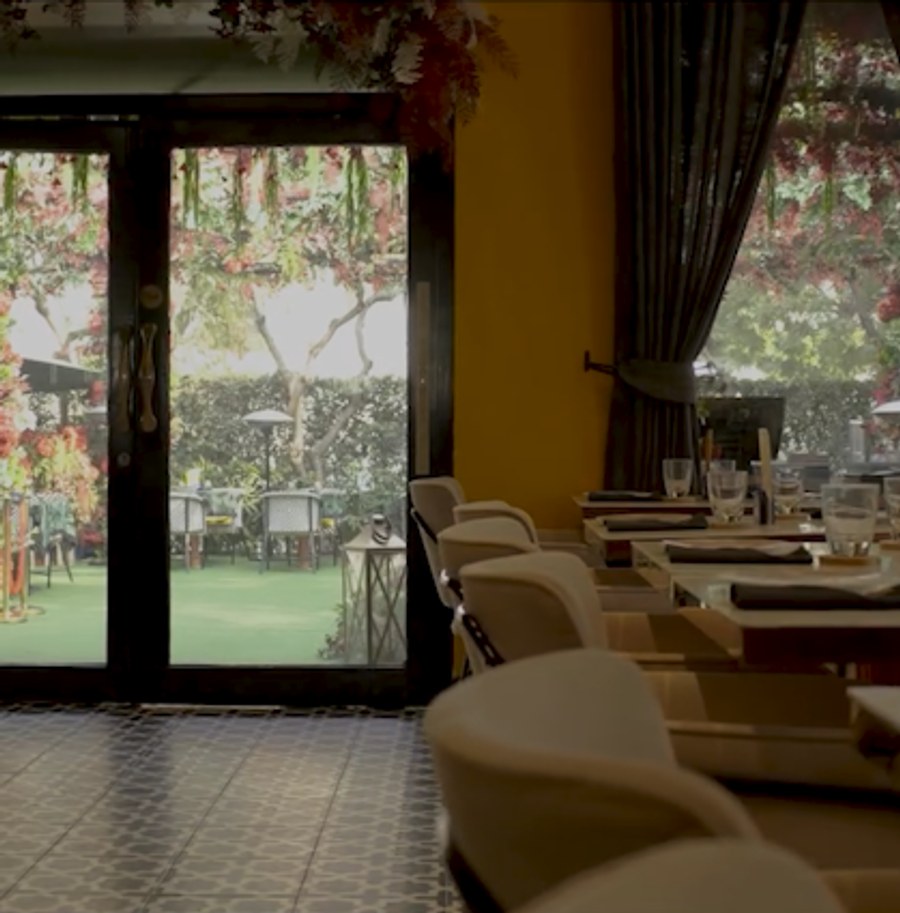

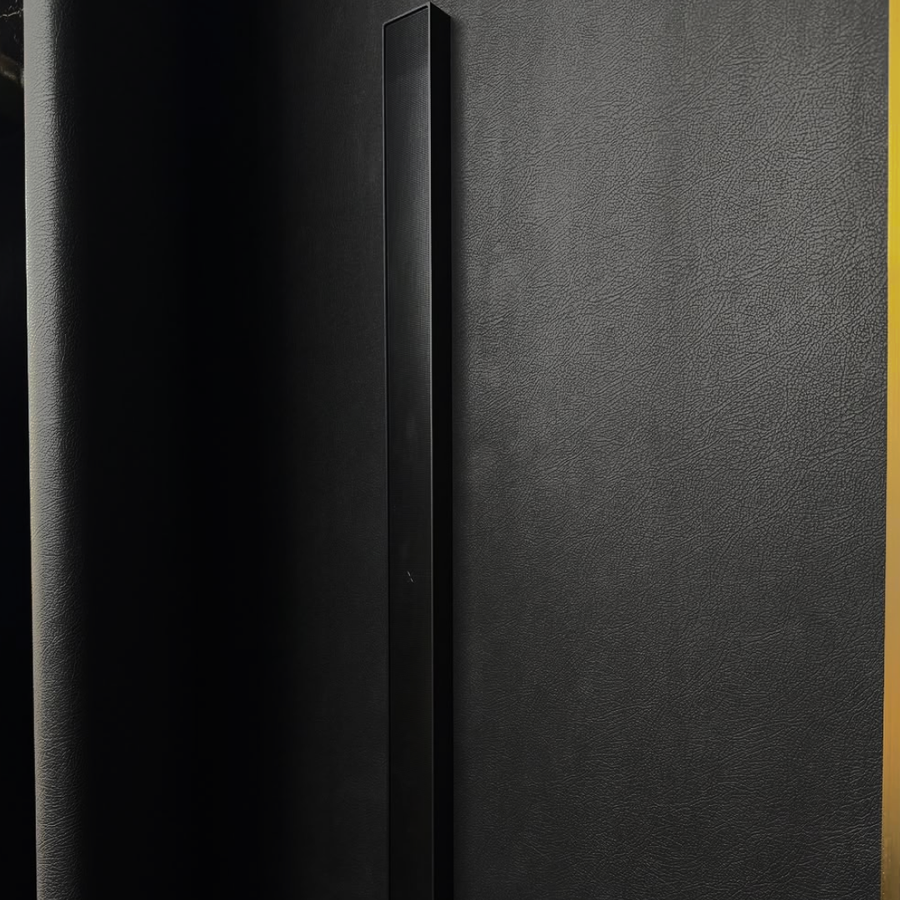

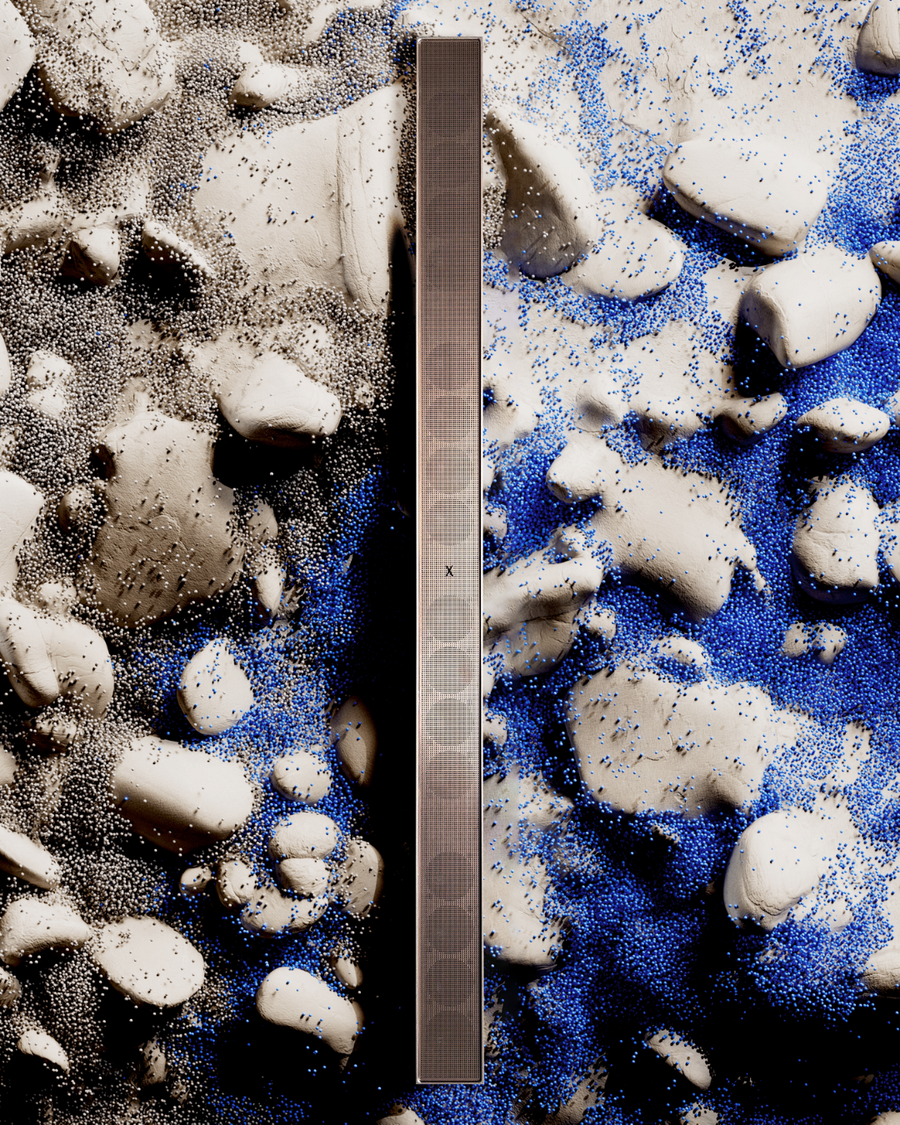

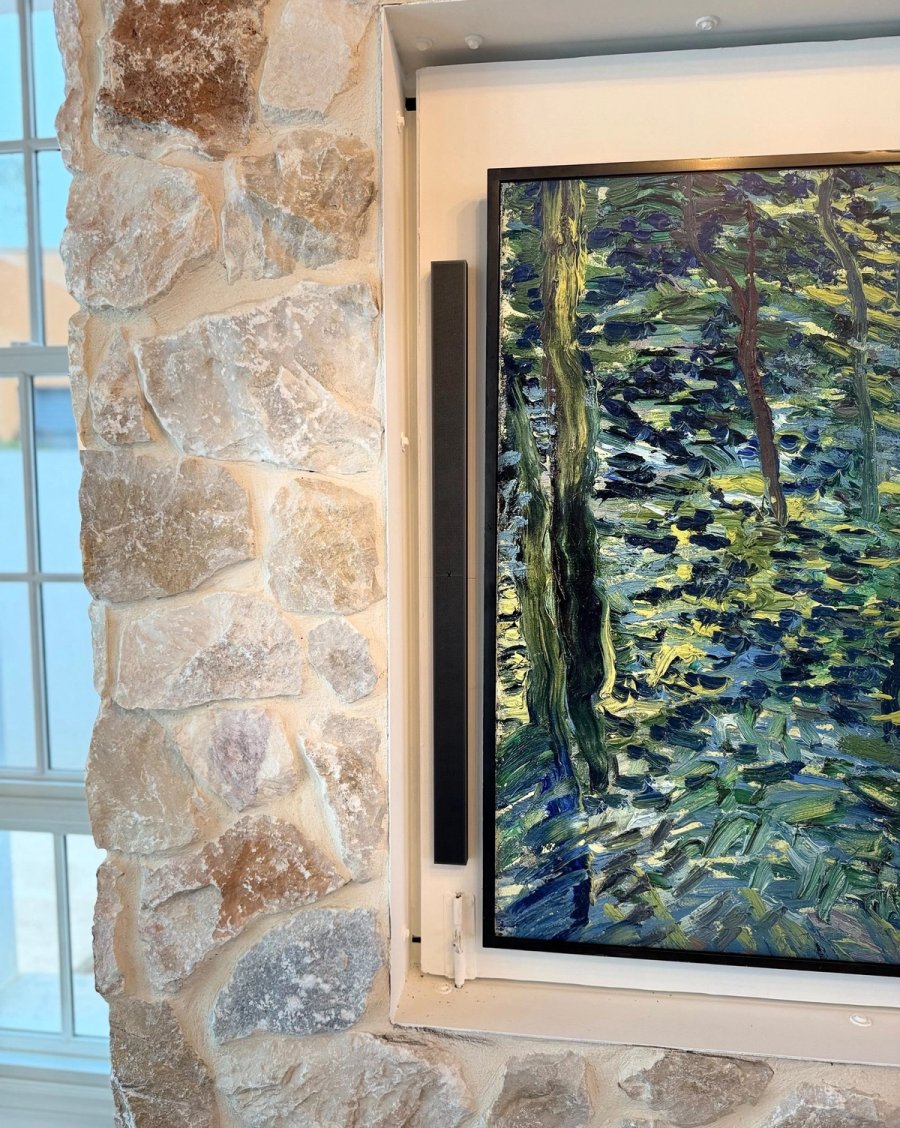

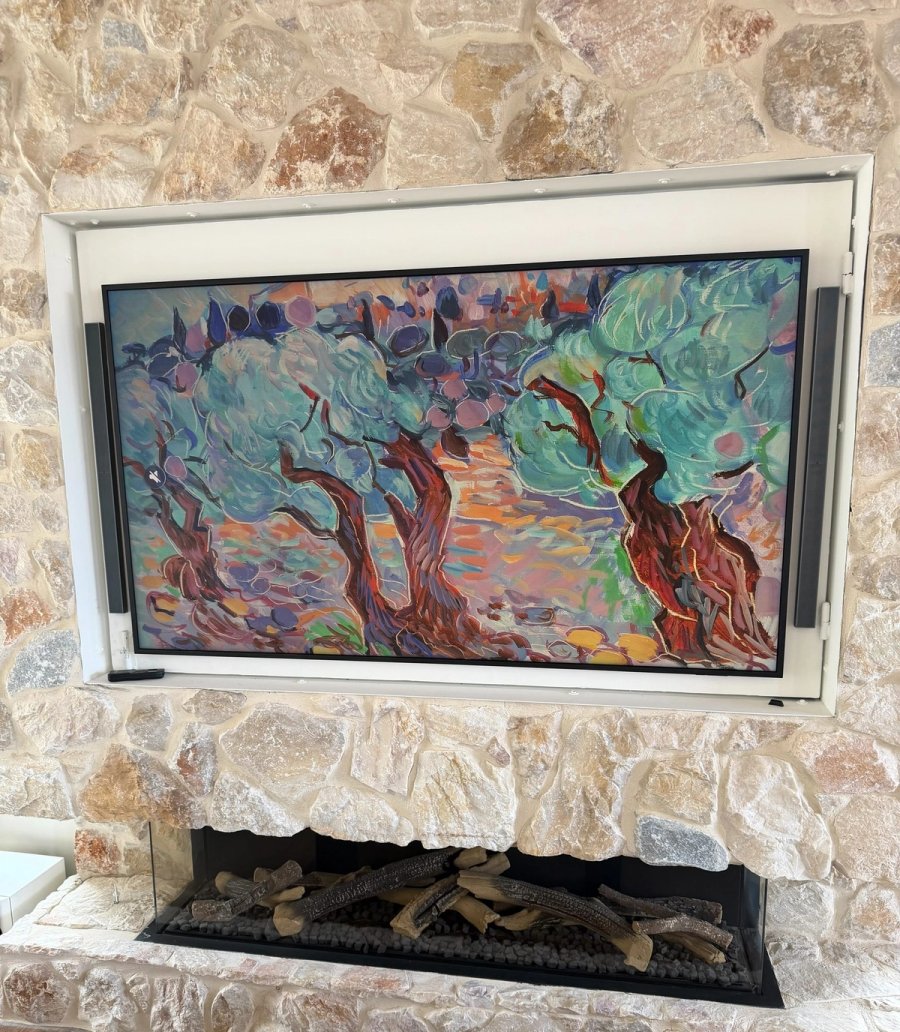

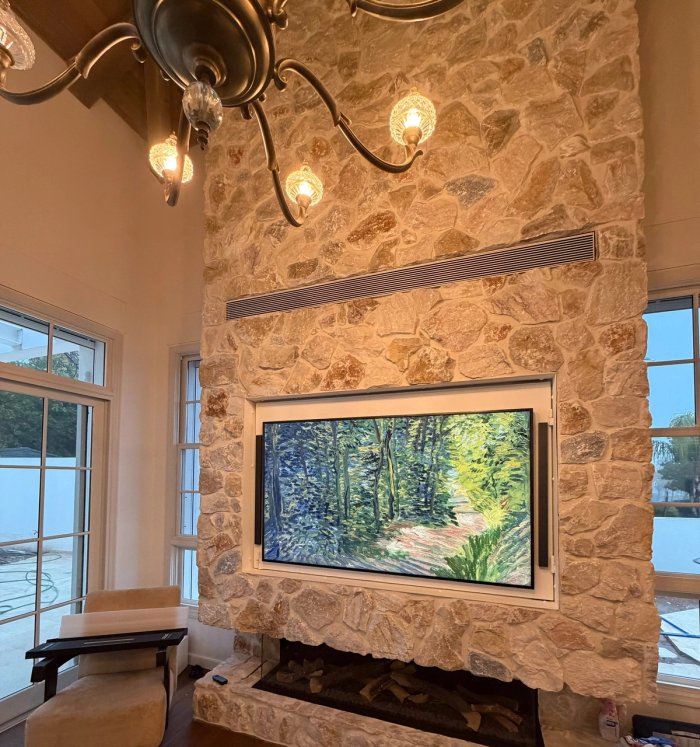

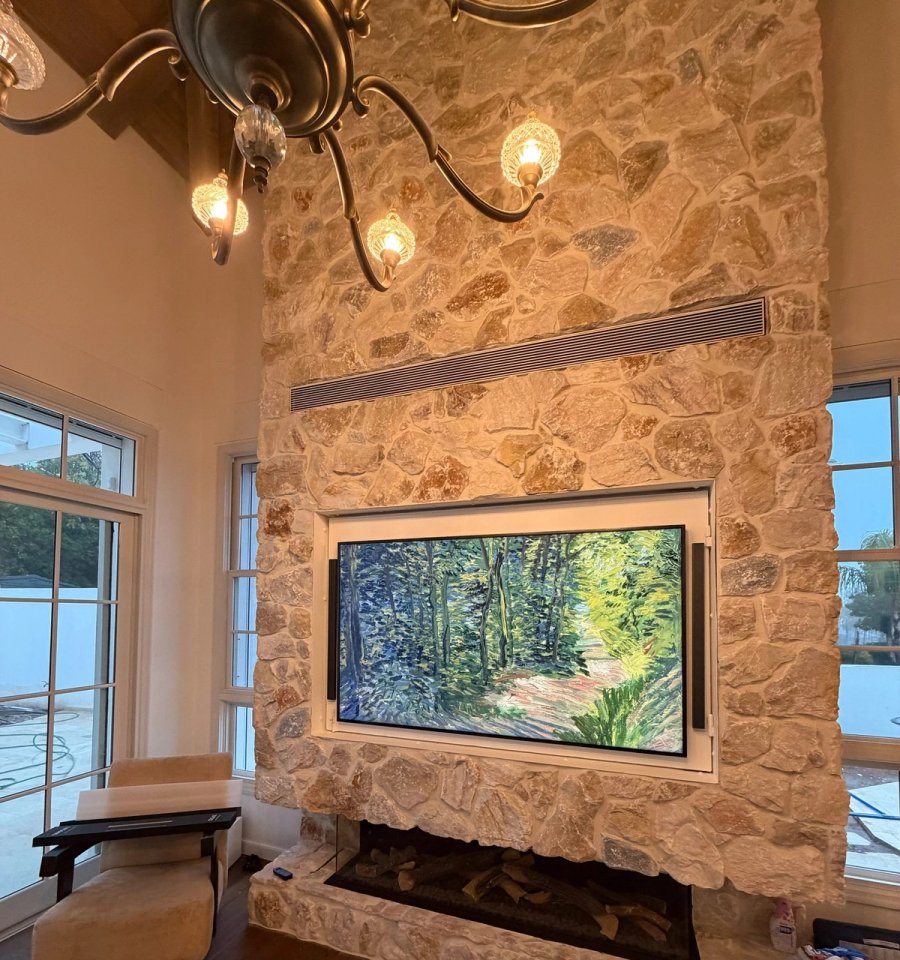

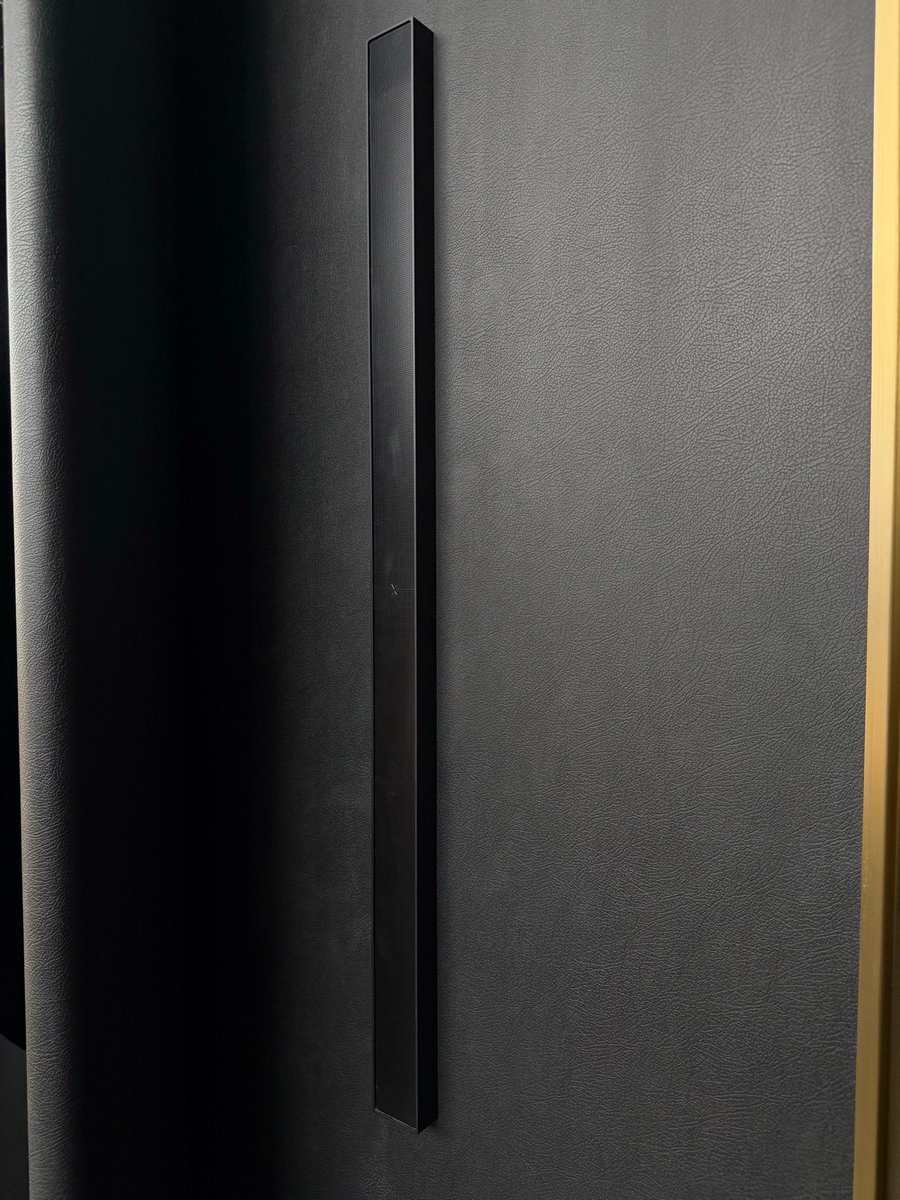

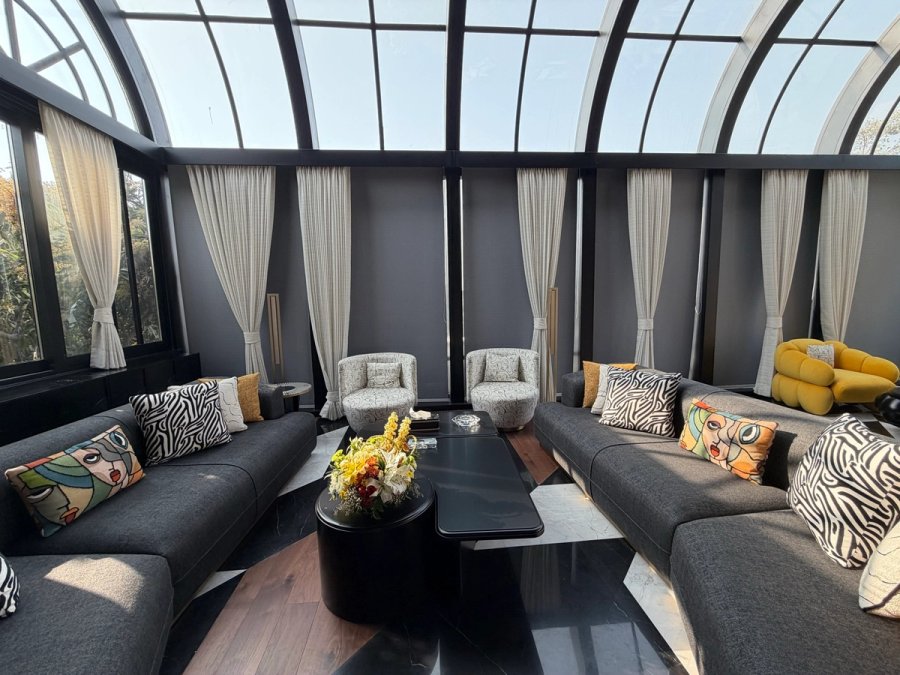

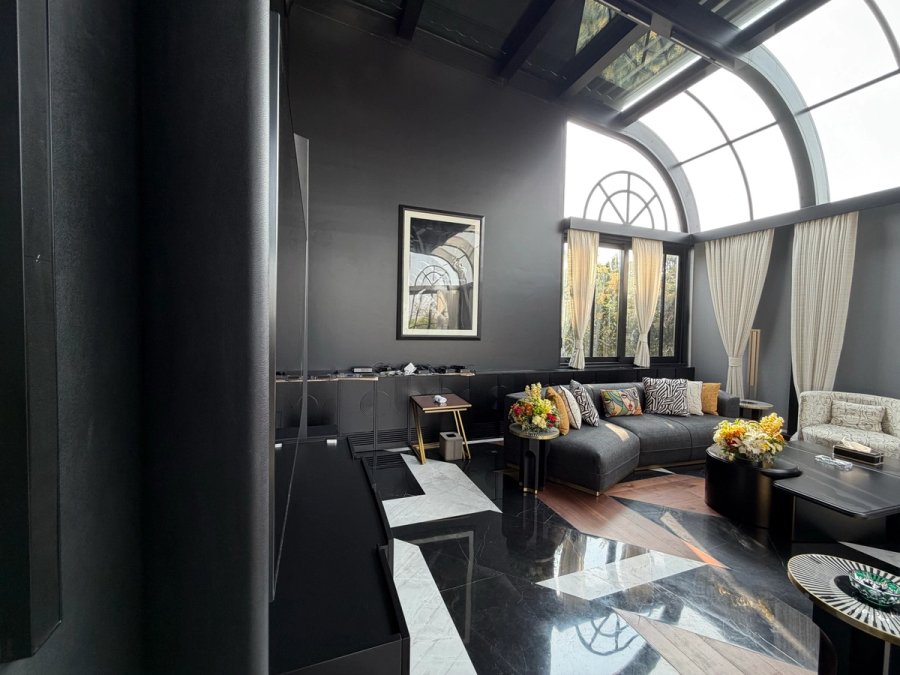

Gallery

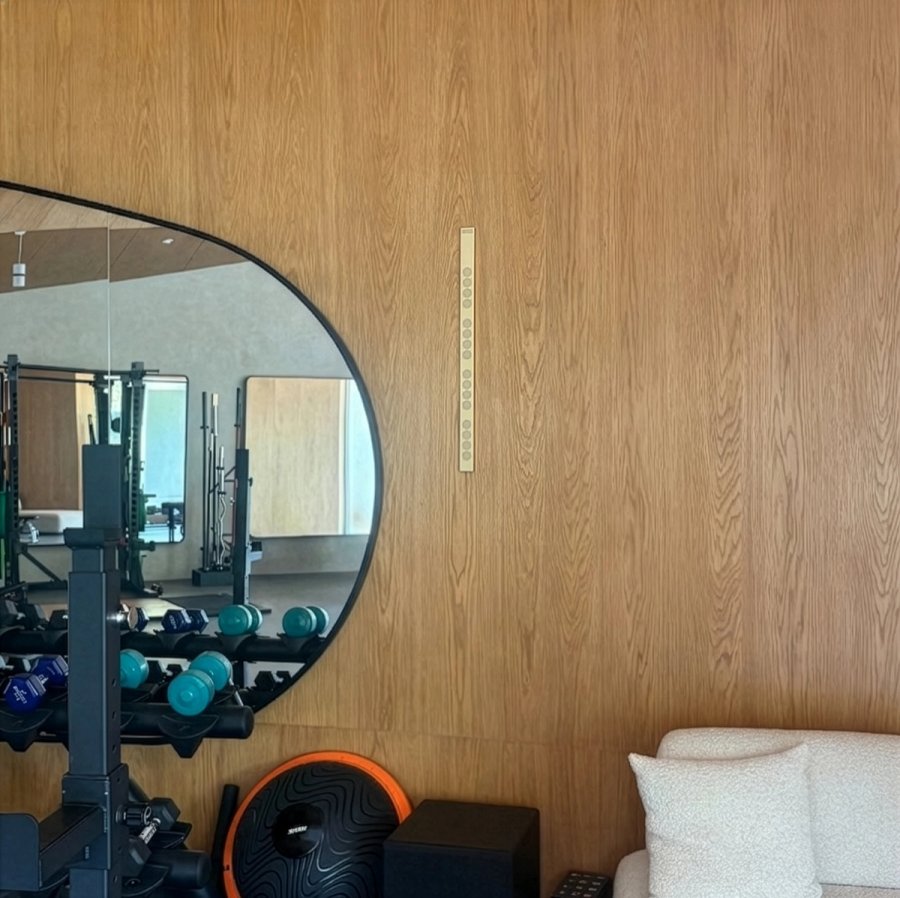

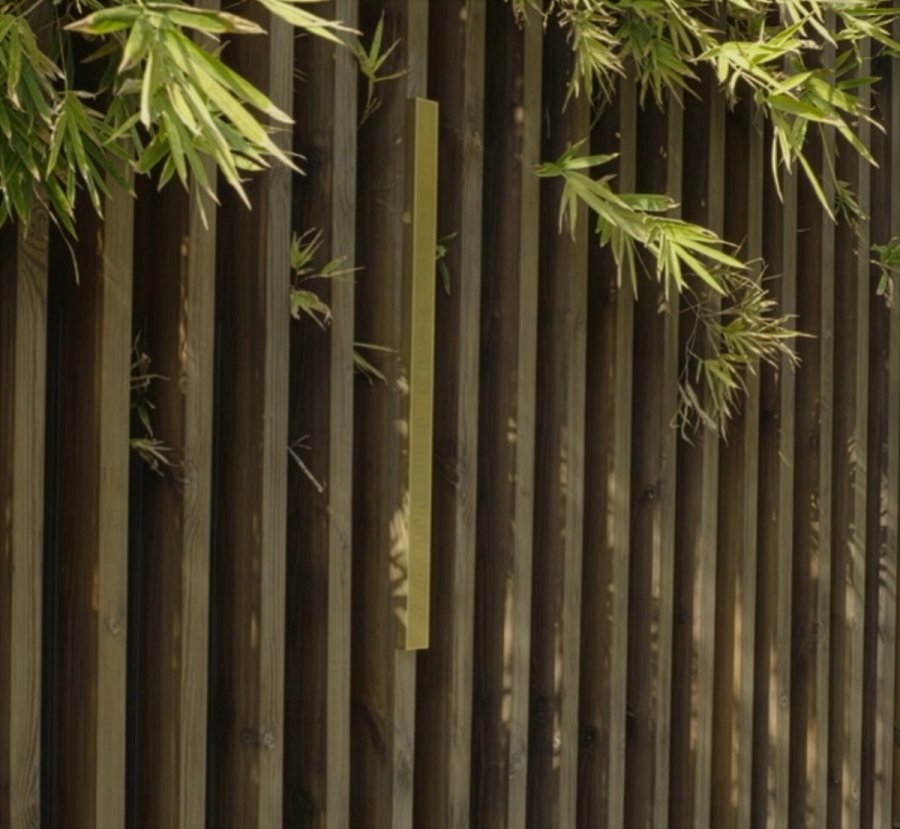

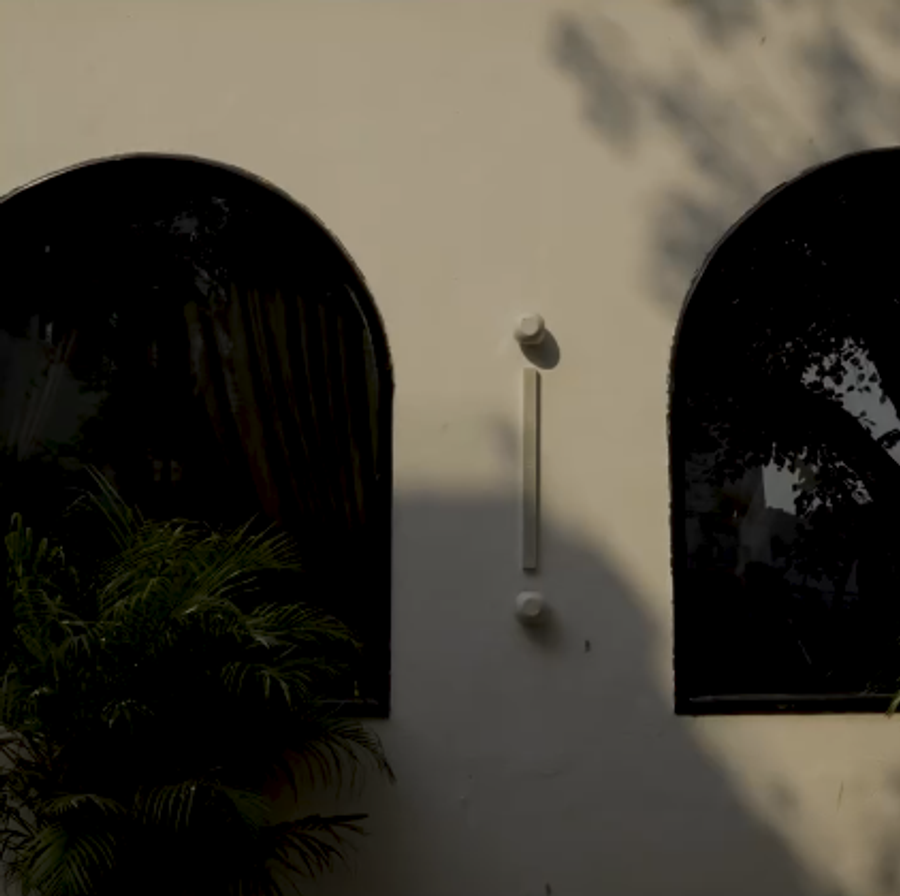

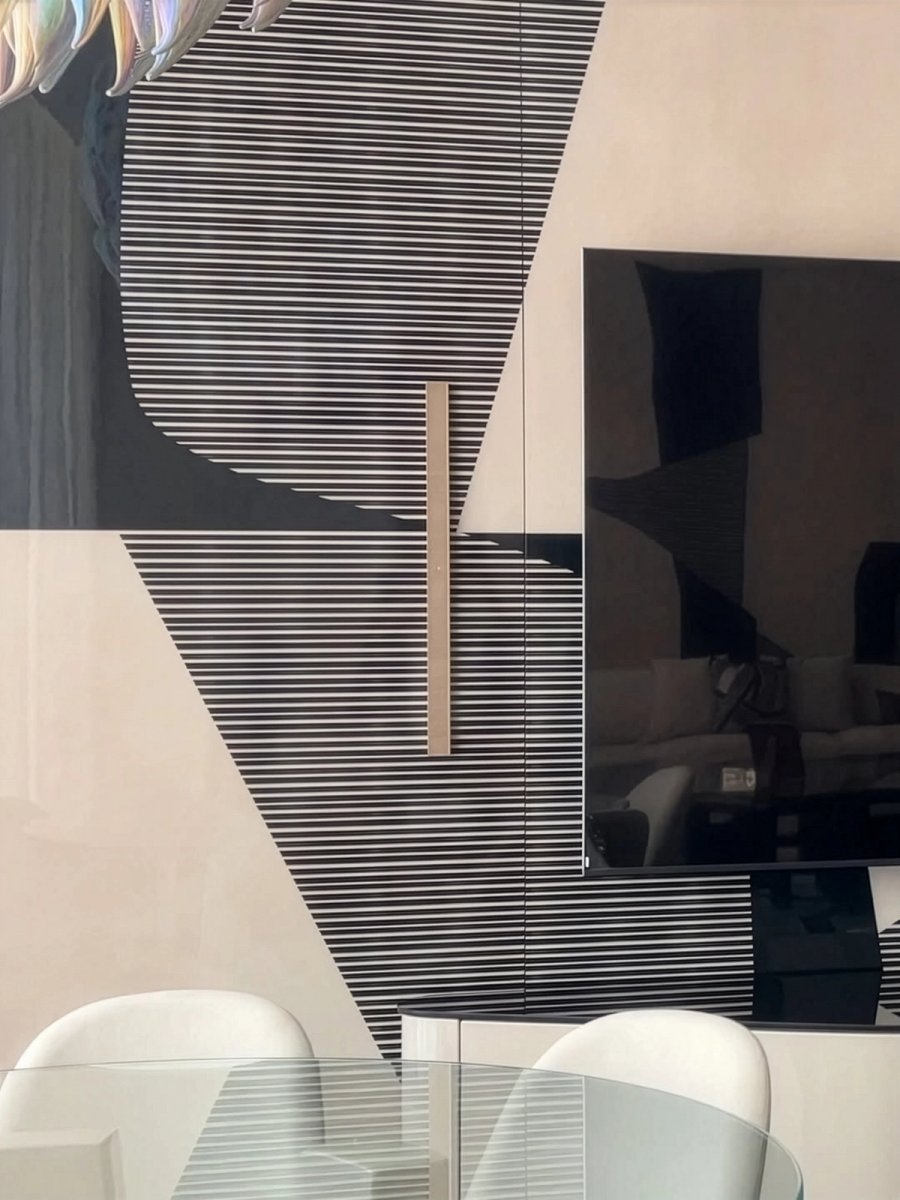

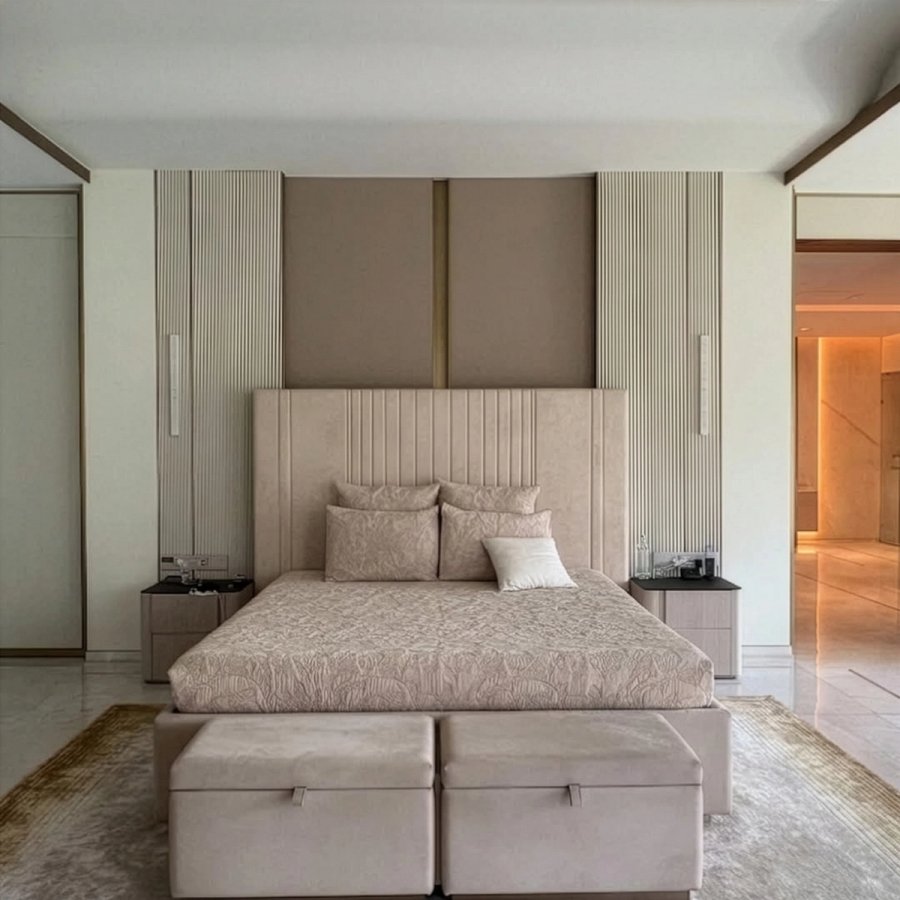

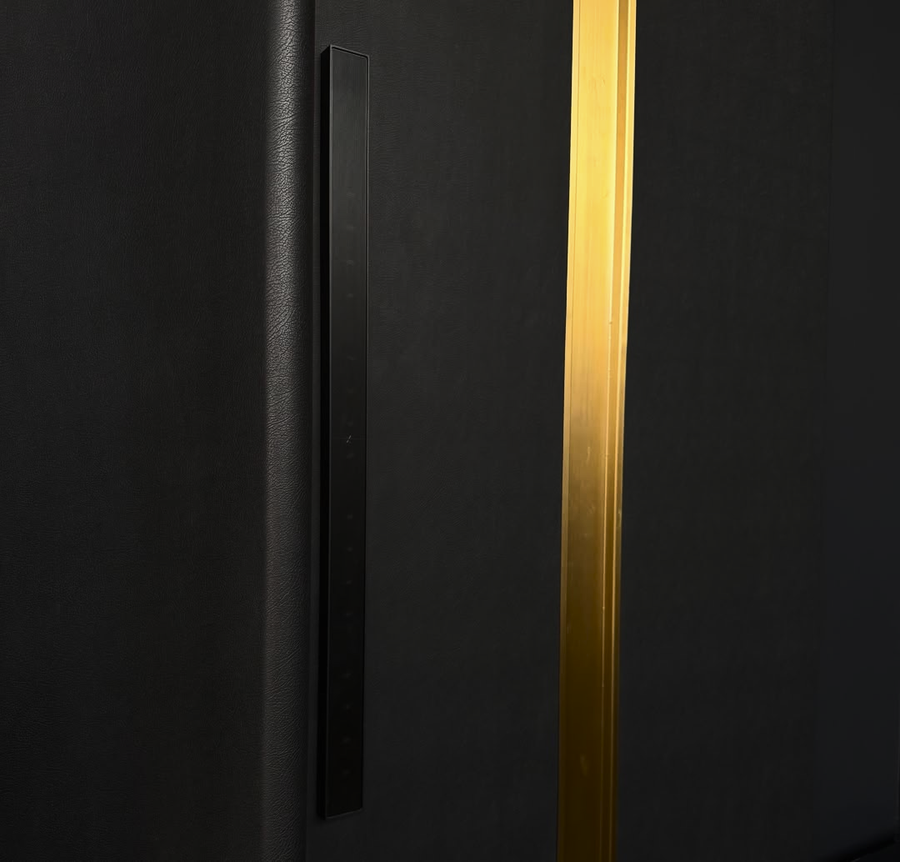

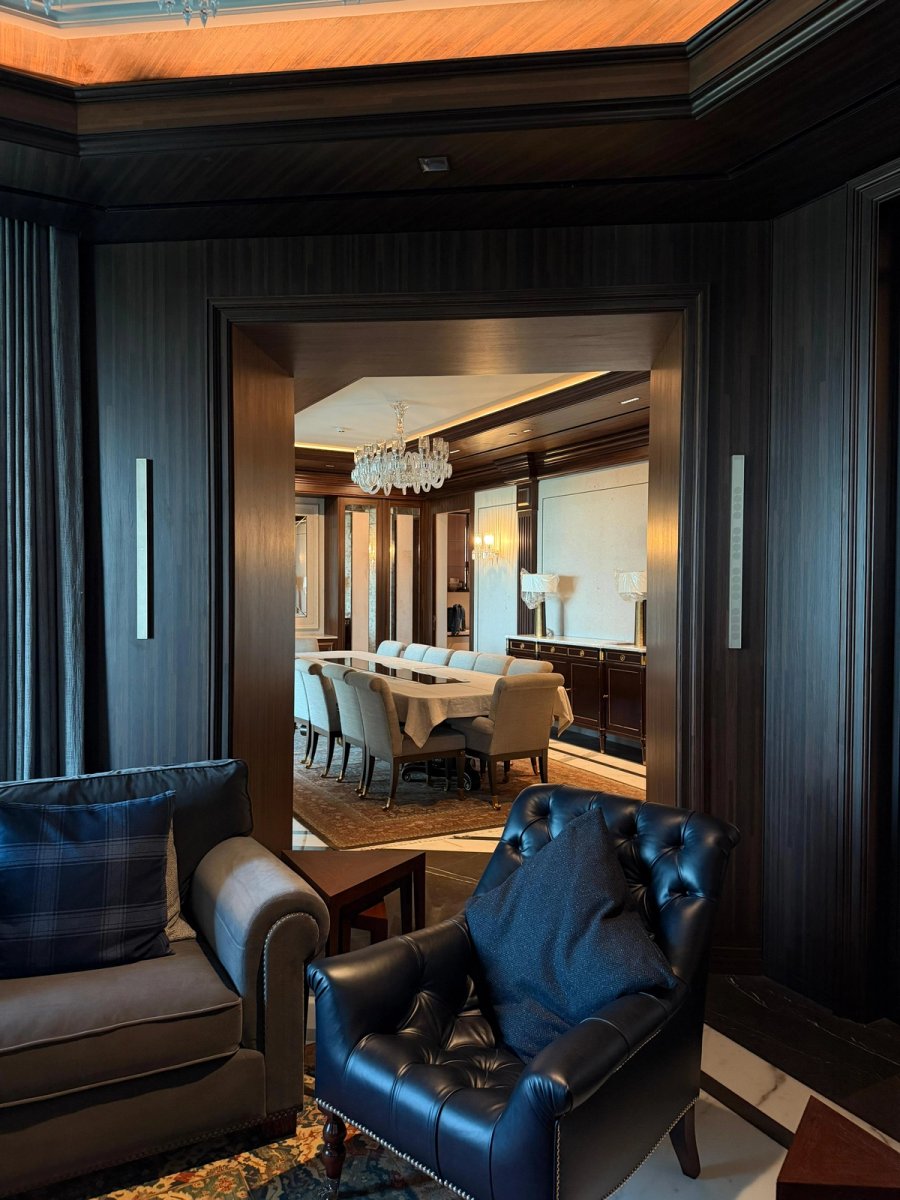

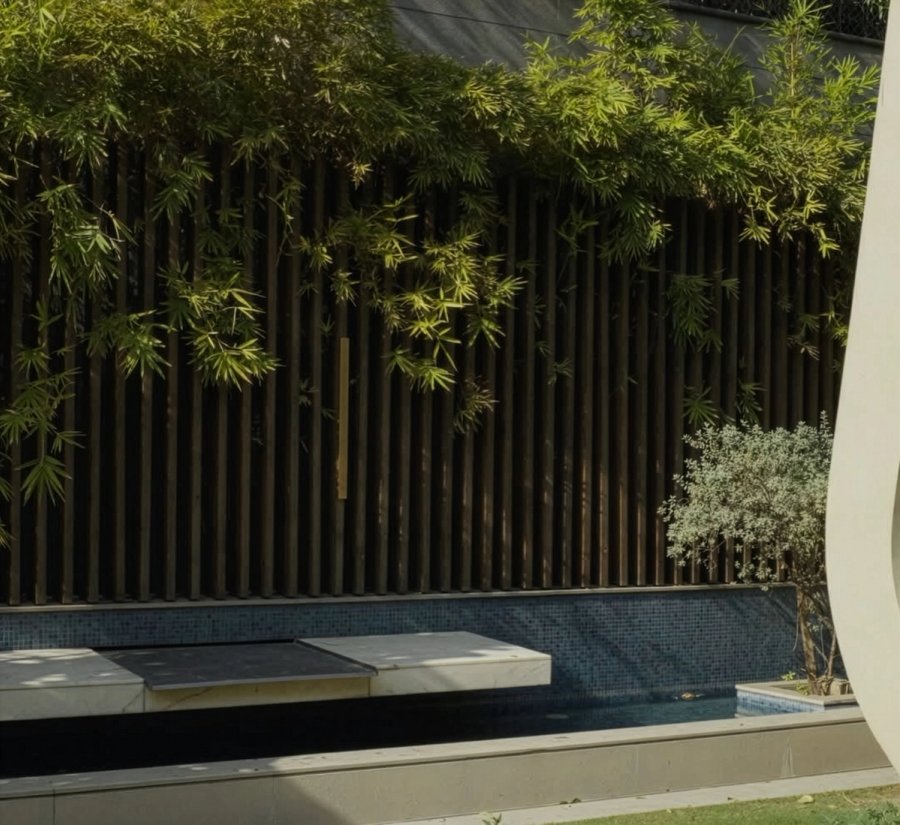

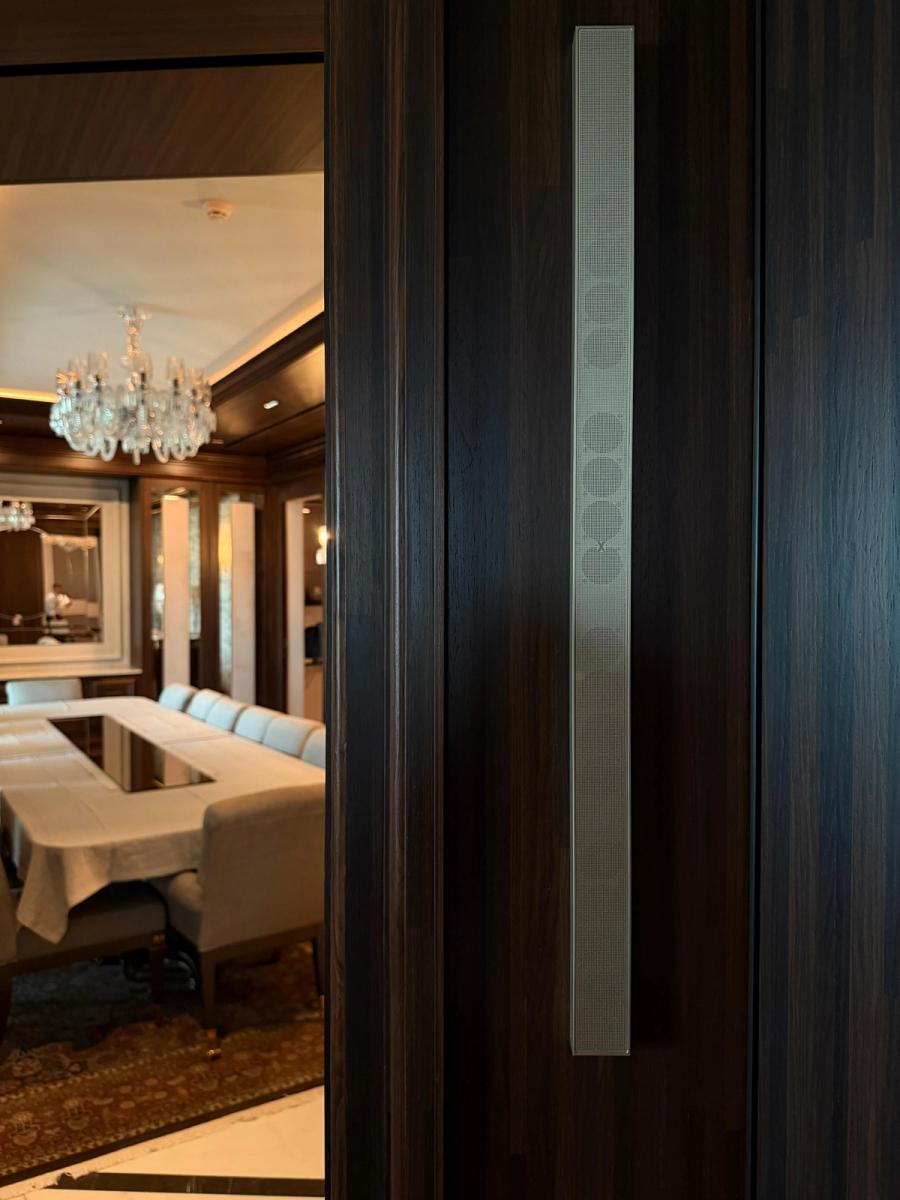

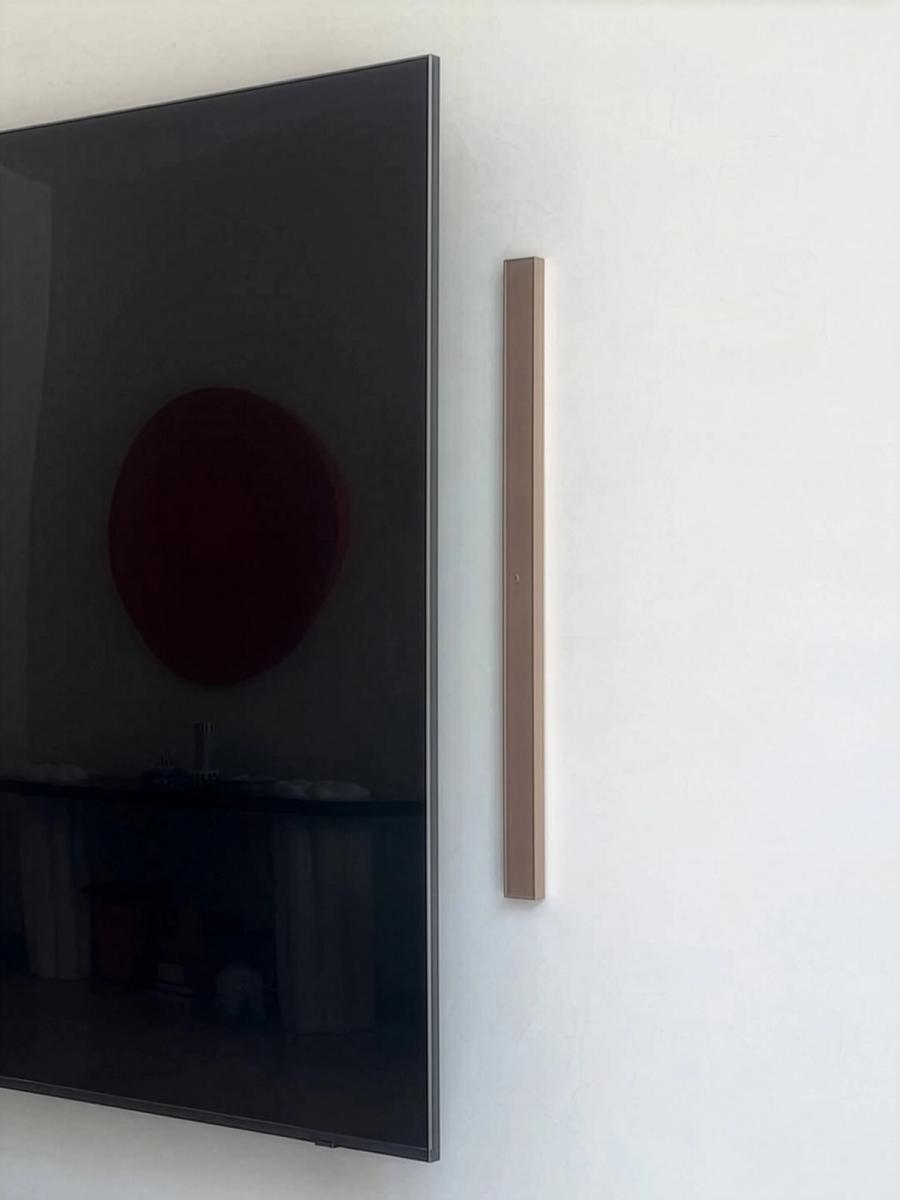

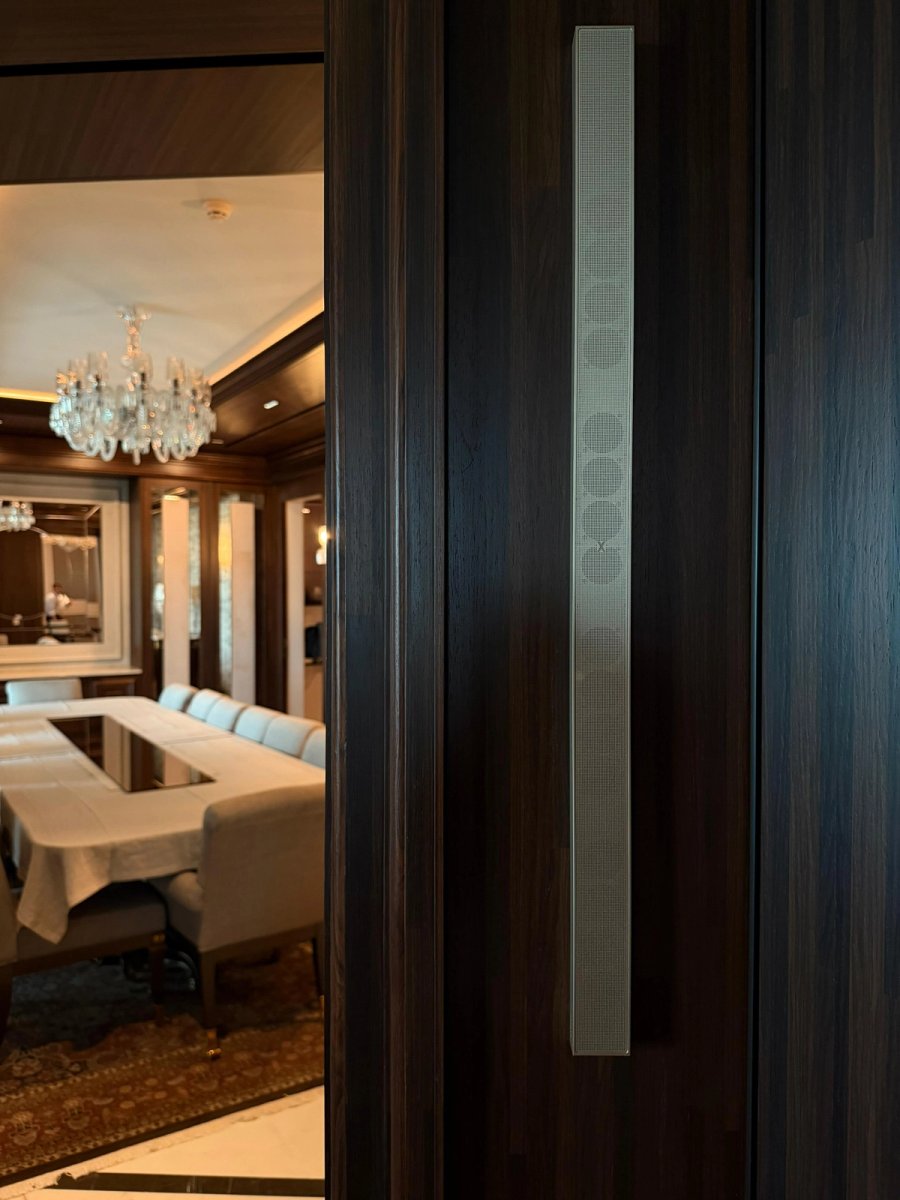

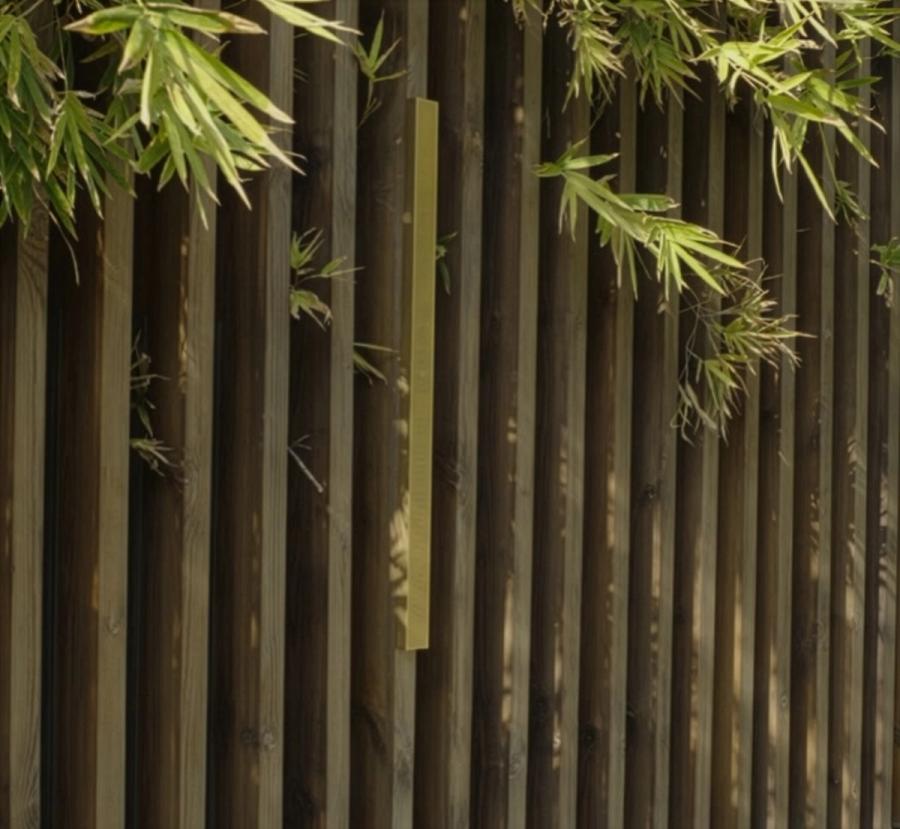

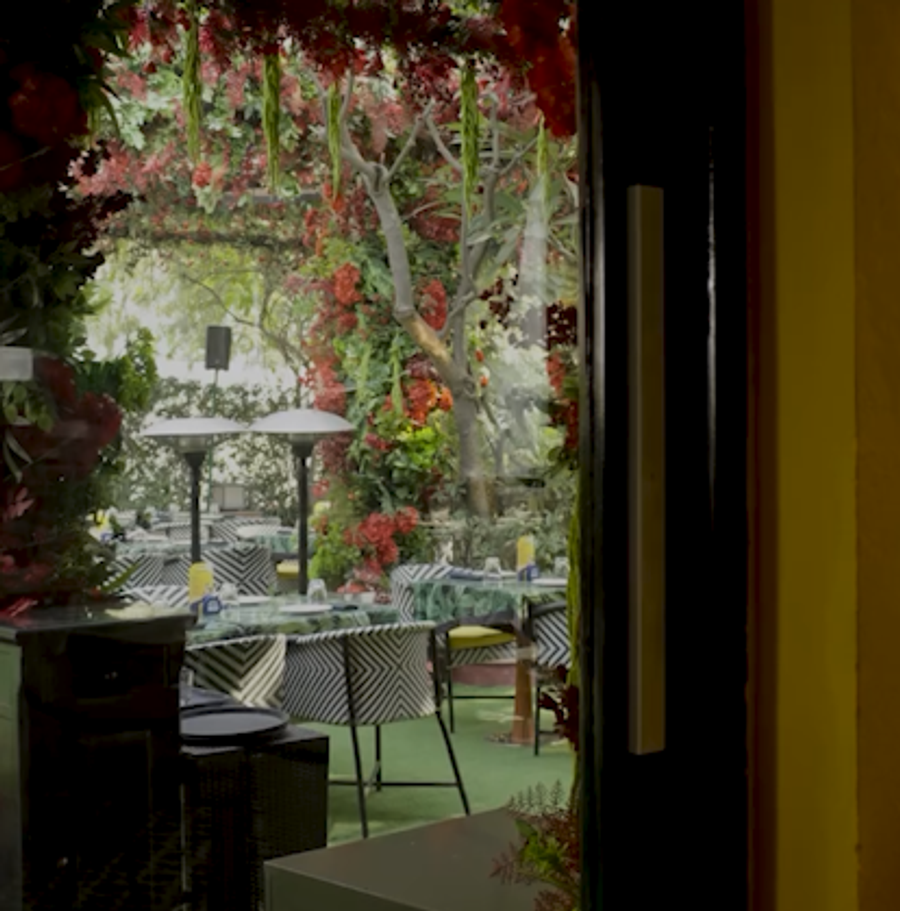

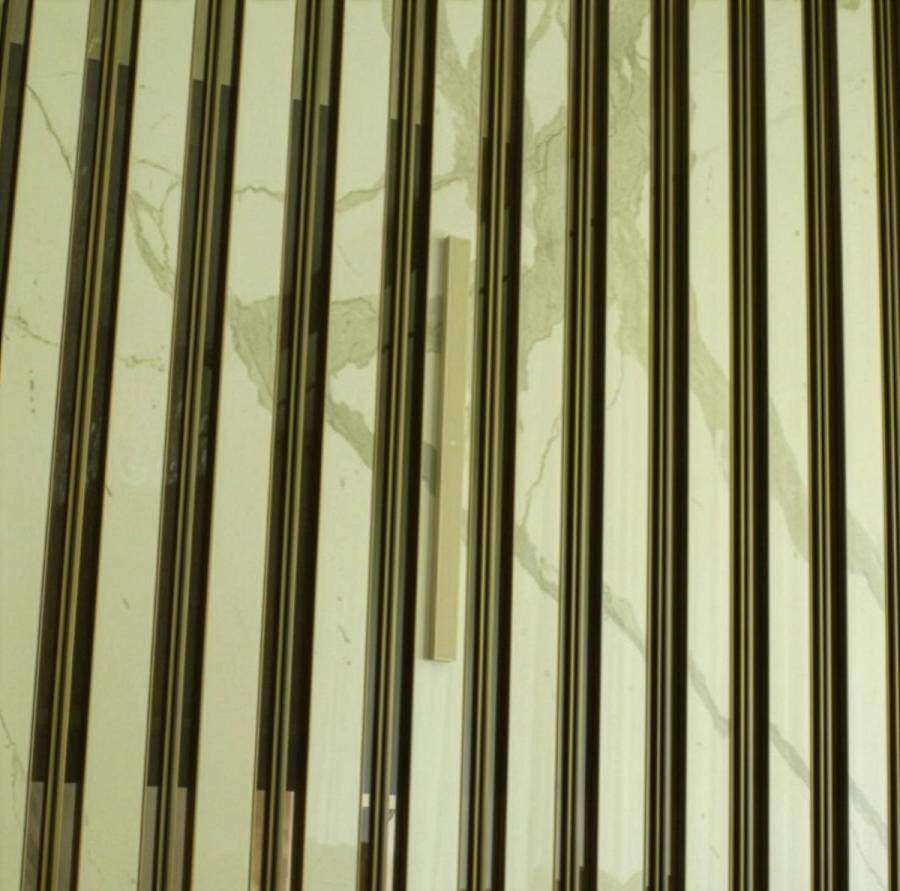

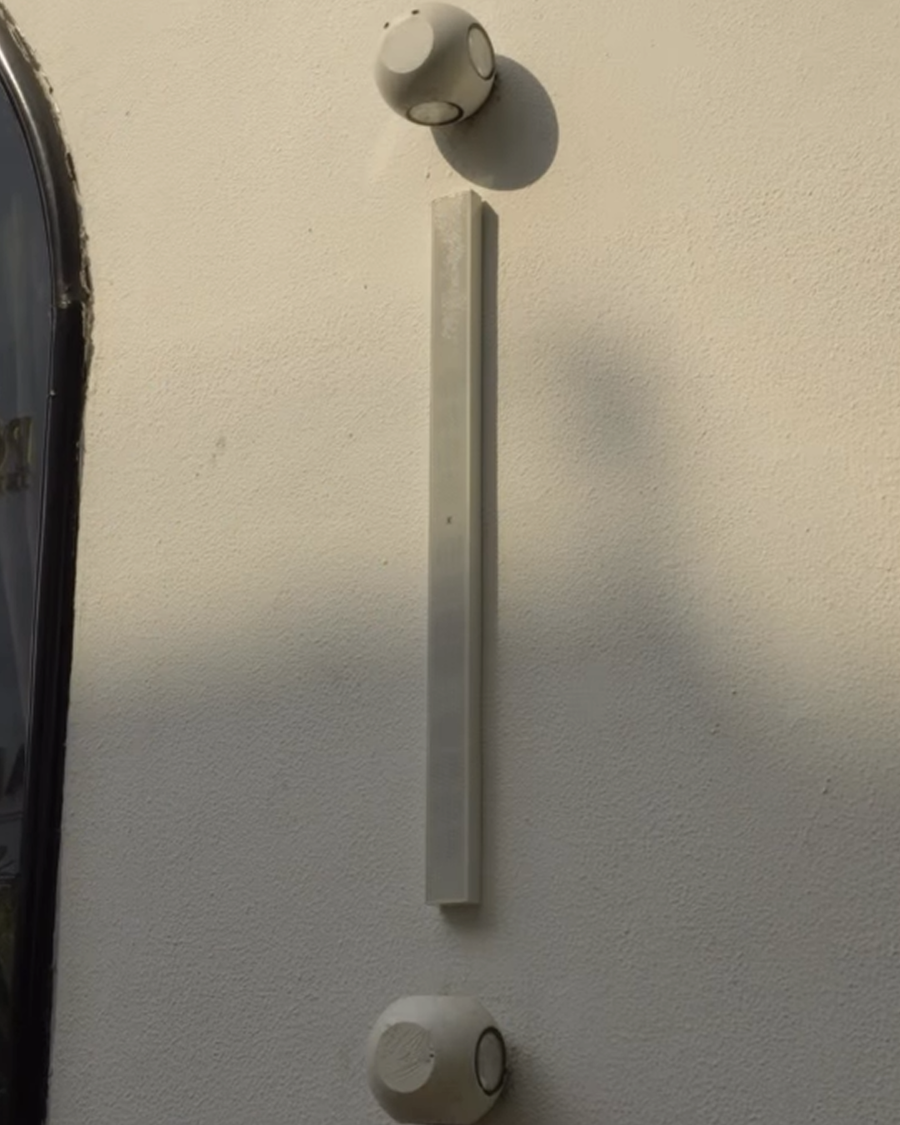

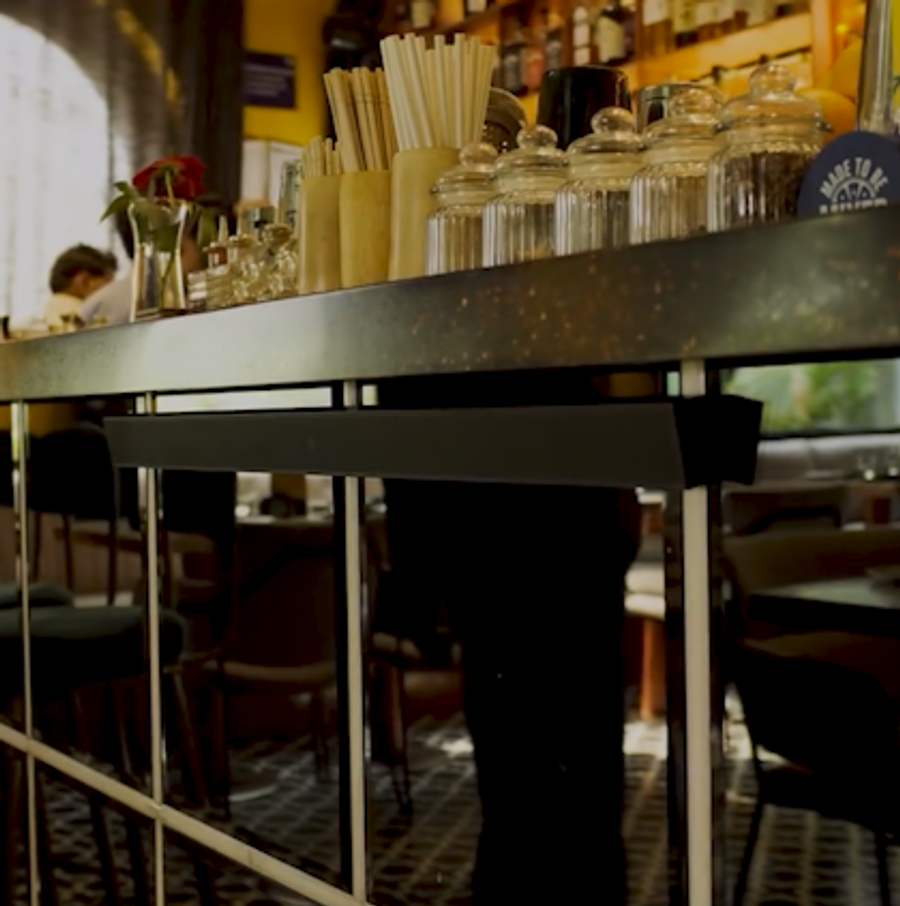

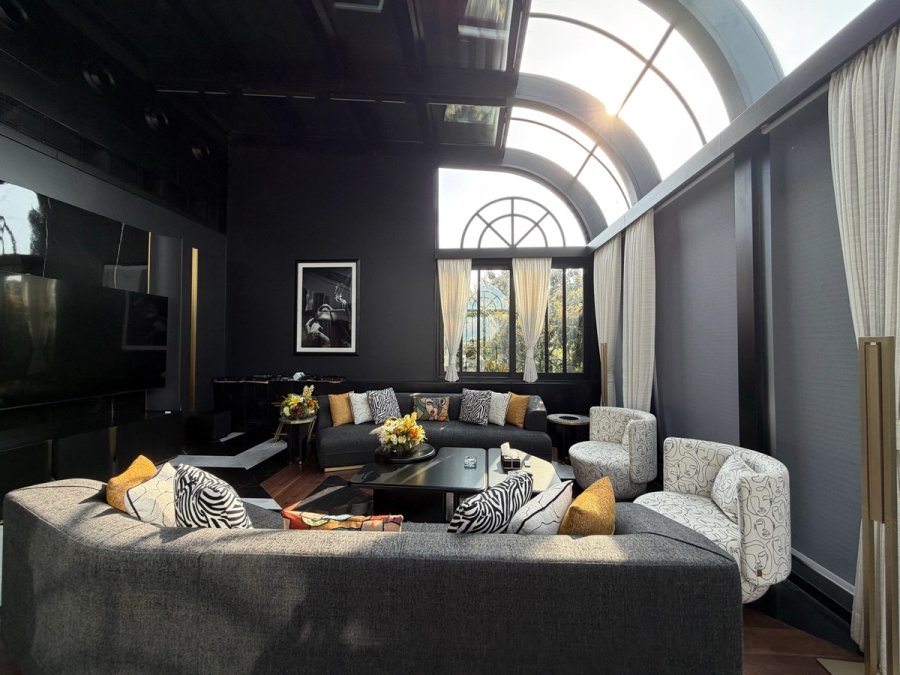

QuadCane in context
