Acacia 10 Powered
Powered Subwoofer
Self-powered 10 inch subwoofer with built-in 200W amplifier. Deep bass to 35Hz with full I/O.
XSW-ACA-10PWM
200W4Ω35Hz – 300HzPowered
Stainless SteelCustom RAL
Move cursor to illuminate
Design Philosophy
×
No port noiseXS-Flow port geometry eliminates turbulence at the vent exit. Full bass output at reference levels — no chuffing, no compression, no audible artefact.
×
No external amplifier
×
No crossover guesswork
×
No visible driver
→
Bass that disappears.
01 / 05
Technical Specifications
16 parameters · scroll to explore
Power RMS
200W
fills a large living room
01 / 16
Acoustic
Power RMS
200W
Power Peak
250W
Impedance
4Ω
Sensitivity
88dB
Frequency
35Hz – 300Hz
Driver
1 × 10"
Physical
Dimensions
380 × 380 × 215.9 mm
Weight
14.4kg
Housing
Wood (Stainless Metal enclosure)
Colours
Stainless Steel
Custom RAL
Available
Power Type
Powered
Crossover
Subwoofer LP only
Max SPL
112dB
Connectivity
Inputs
Line In (RCA)
Outputs
2Ch Speaker Out, LFE On/Off Button, 5V Out
Acoustic Measurements
Frequency Response & Directivity
Frequency ResponseSubwoofer range
On-axis · 1W/1m · 35Hz – 300Hz ±3dB · 88 dB sensitivity

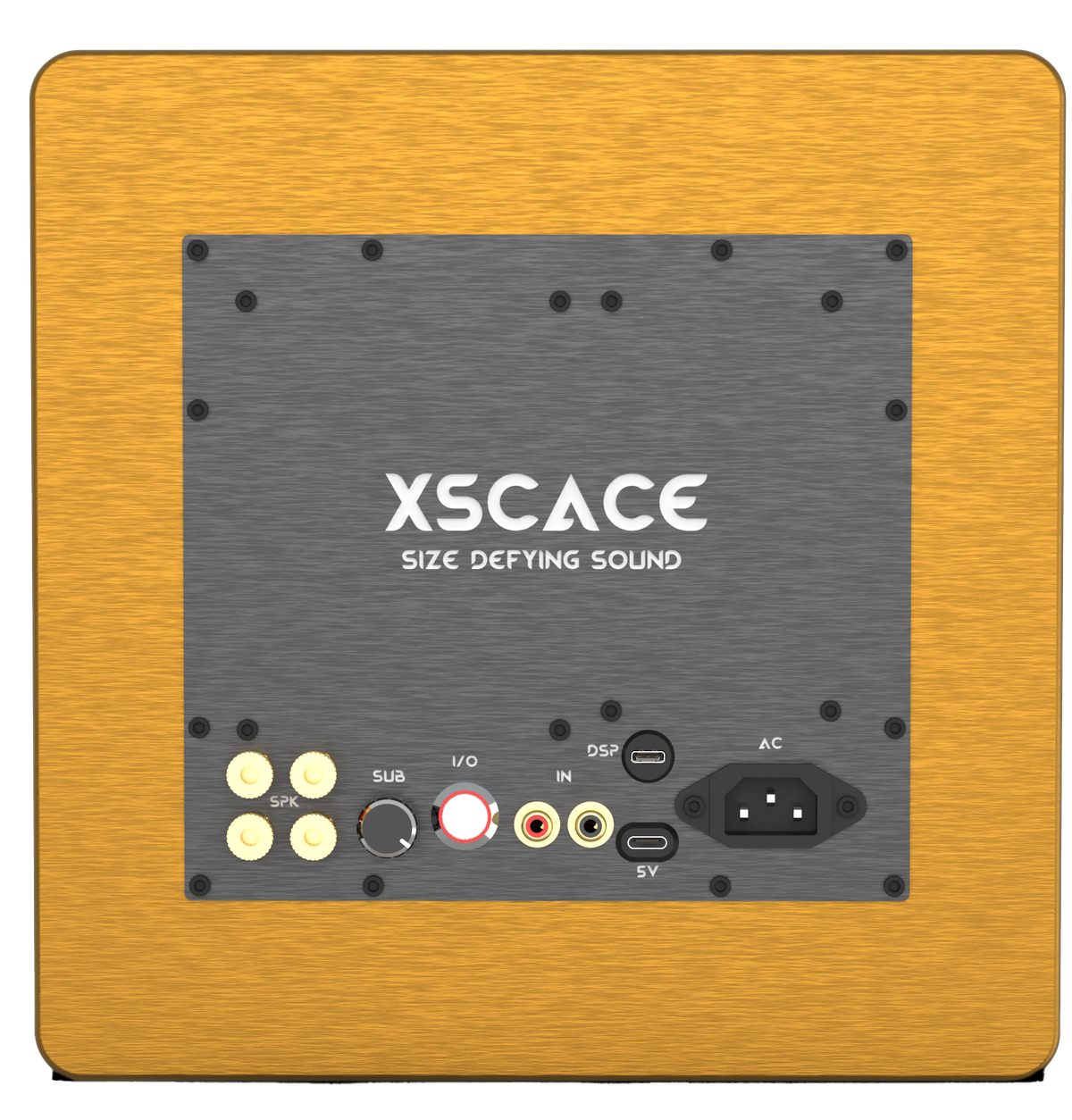

Rear Panel
Connections
IN
Line In (RCA)
OUT
2Ch Speaker Out, LFE On/Off Button, 5V Out
Proprietary Technology
Built different. By design.
In Use
Common installations
AI System Builder
Don't see your setup?
Tell the AI your room, budget and use case — get a complete system in seconds.
Also available in
Product
In Use
In-Wall Passive
Acacia 10 In-Wall Passive
Identical acoustic performance installed flush into the wall cavity. Completely invisible. Requires an external amplifier with LFE output.
View Acacia 10 In-Wall →
Product
In Use
Standard Passive
Acacia 10 Standard Passive
Same enclosure and driver, without the built-in amplifier. Pair with any subwoofer output for a fully custom signal chain.
View Acacia 10 Passive →Full DSP Control · Over LAN
Controlled by XSCACE
Network Controller
Connect to the Acacia 10 Powered over your local network. Adjust the built-in DSP in real time — crossover frequency, parametric EQ, output delay, and channel routing — without touching the hardware.
×Parametric EQ — 5 bands per channel
×Variable crossover · 40–200Hz
×Channel delay · up to 27ms
×Factory + custom preset management
×Real-time level monitoring
Open Integration · TCP/IP API
Works with any control system
The Acacia 10 Powered exposes a full TCP/IP command API. Any IP-capable control system integrates natively — no middleware, no adapters.
Control4
Crestron
Savant
AMX
RTI
Josh.ai
+ more
Technical Documents
Downloads
Gallery
Acacia 10 Powered in context
