Supports
Airplay 2

Bluetooth

Pandora
DLNA

UPnP

Music faithful to the
Artist's original vision

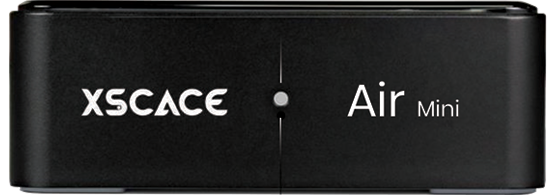

Air Mini is a compact Wi-Fi pre-amplifier and streamer that delivers reference-class audio from a tiny, industrial build.
Designed to integrate seamlessly with your high-end system, visible or hidden, it streams from every major platform with zero compromise.
With 192kHz/24-bit optical output, Bluetooth 5.4, and multiroom capability via Airplay 2 or the iAudioCloud app, Air Mini brings studio-quality audio to any room.
Flexible inputs.
Reference outputs.
AUX, HDMI ARC, and USB disk inputs feed into a precision DAC stage delivering a stereo line output and 192kHz/32-bit optical — faithful to the source at every step of the chain.
The Complete
XSCACE Ecosystem
Air Mini is engineered to integrate with every XSCACE speaker and amplifier. Any high-end speaker system can also be paired
Cane
Slim Array · Speaker
50W ultra-slim 21mm speaker. Pairs perfectly with Air Mini for multiroom Hi-Fi in any interior.
Air Amp
Amplifier · Streamer
​Network amplifier with DSP control and built-in streaming for passive speakers.
Juniper
Subwoofer
Active subwoofer designed to integrate with XSCACE streamers & speakers for a full-range system.

Multiroom Audio
App Control
iAudioCloud
Specifications
Air Mini
Audio I/O
Network
WIFI 2.4G & 5G or LAN
Bluetooth
Bluetooth 5.4
Audio Input
AUX
Max 1V RMS Input
HDMI ARC
Support HDMI Specification 1.4 and CEC
USB Disk
Support MP3 / AAC / FLAC / ALAC / WMA / APE / WAV / OGG audio format
Audio Output
Line
Optical
Max 2V RMS Stereo Output @1kHz 0db
192kHz/32Bit Sample Output Max 0db
Network
Ethernet In
RJ45
Connect to router
Ethernet In
RJ45
Output to other device to share the network
Music Sources
Online Music
Spotify, Tidal, Yandex Music, Apple Music, Qobuz, TuneIn, vTuner, QQ Music etc.
MultiRoom function
By APP to setup one BOX as master to sync music to other BOX
General
Power
Frequency
THD
SNR
DC 5V – 2A
20Hz–20kHz
0.03%
>95db @ Max
